Fanttik S2 Pro Max Electric Screwdriver Instruction Manual

Mawu Oyamba

This manual provides detailed instructions for the safe and efficient operation of your Fanttik S2 Pro Max Electric Screwdriver. Please read this manual thoroughly before using the product and retain it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your device.

Zamkatimu Phukusi

Onetsetsani kuti zonse zomwe zalembedwa pansipa zikuphatikizidwa mu phukusi lanu:

• Fanttik S2 Pro Max Electric Screwdriver (1.46 x 7.23 inches)
• Pop-up Storage Case (2.42 x 8.42 inches)
• 16 Pcs 1/4" Hex Shank Bits
• L-Shaped Adapter
• Buku Logwiritsa Ntchito

Zogulitsa Zamankhwala

Powerful Torque Output

Equipped with a 250 RPM MagnaStorm motor, the Fanttik S2 Pro Max electric screwdriver delivers up to 6N·m of torque, suitable for common household tasks such as computer assembly, furniture installation, and home appliance repairs.

Precision Torque Control

The mechanical-electronic hybrid torque control system offers 7 adjustable torque settings (0.5, 1, 2, 3, 4, 5, 6N·m), allowing for smooth power adjustments. The lowest setting (0.5N·m) is ideal for delicate electronic repairs.

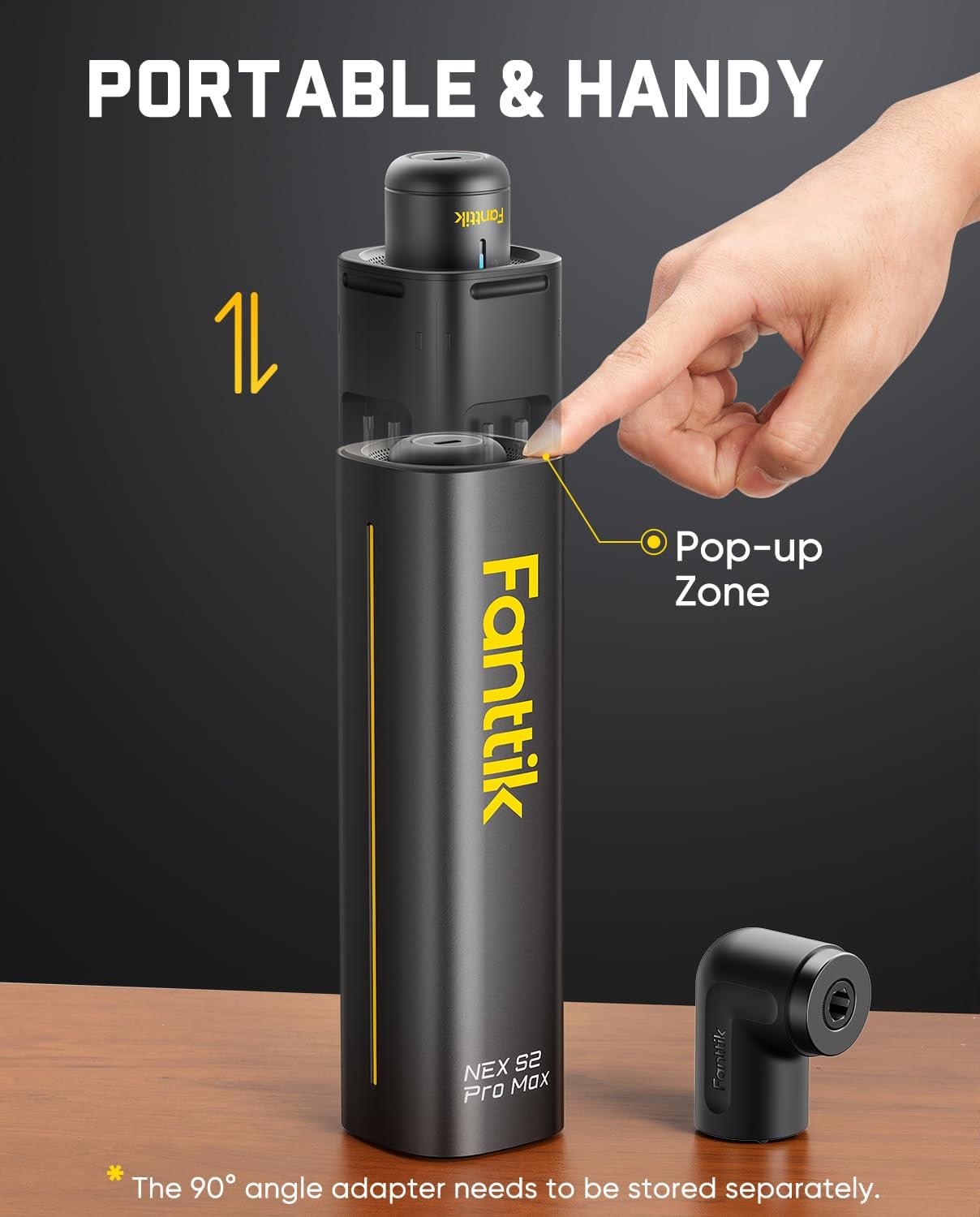

One-Press Pop-Out Design

A simple press instantly reveals the driver and its storage case for easy access and hassle-free storage. This design enhances portability for outdoor work. The kit includes 16 selected long household bits to meet common DIY needs with smooth, seamless operation.

90° Angle Adapter

For tight spaces, the included 90° angle adapter facilitates operation and improves comfort. Note that the adapter needs to be stored separately from the main unit.

Long-Lasting Battery and Faster Charging

Powered by a 2000mAh rechargeable battery, the screwdriver offers extended use and reduces the need for frequent charging. The 5V/2A Type-C charging port ensures universal compatibility, making it faster and easier to recharge.

Smart Lighting Interaction

The device is equipped with an LED work light to illuminate dim workspaces. The charging indicator ring signals low battery and charging status, while the energy bar displays torque strength and motor direction (forward/reverse), providing a user-friendly experience through lighting interactions.

Khazikitsa

Kulipira Koyamba

Before first use, fully charge the screwdriver. Connect the provided Type-C charging cable to the charging port at the bottom of the screwdriver and to a 5V/2A power adapter (not included). The charging indicator ring will show the charging status. A solid green light indicates a full charge.

Inserting a Bit

1. Press the pop-up zone on the storage case to reveal the screwdriver.
2. Select the appropriate 1/4" hex shank bit from the storage case.
3. Insert the bit firmly into the magnetic bit holder on the screwdriver.

Attaching the 90° Angle Adapter

1. Ensure no bit is currently inserted in the screwdriver.
2. Align the 90° angle adapter with the bit holder and push it firmly into place until it clicks.
3. Insert the desired 1/4" hex shank bit into the adapter.

Malangizo Ogwiritsira Ntchito

Kuyatsa/Kuzimitsa

The screwdriver is activated by pressing the forward or reverse button. It will automatically power off after a period of inactivity.

Kusintha Zikhazikiko za Torque

Rotate the top section of the screwdriver to cycle through the 7 torque settings (0.5 to 6 N·m). The gradient indicator bar will visually display the selected torque level. Always start with the lowest torque setting and increase as needed to prevent overtightening or stripping screws.

Kupita Patsogolo/Kubwerera M'mbuyo

Use the rocker switch on the side of the screwdriver to select the desired rotation direction: press the top for forward (tightening) and the bottom for reverse (loosening). The energy bar will indicate the motor direction.

Kugwiritsa ntchito kuwala kwa LED

The integrated LED work light automatically illuminates when the screwdriver is in operation, providing clear visibility in dimly lit areas.

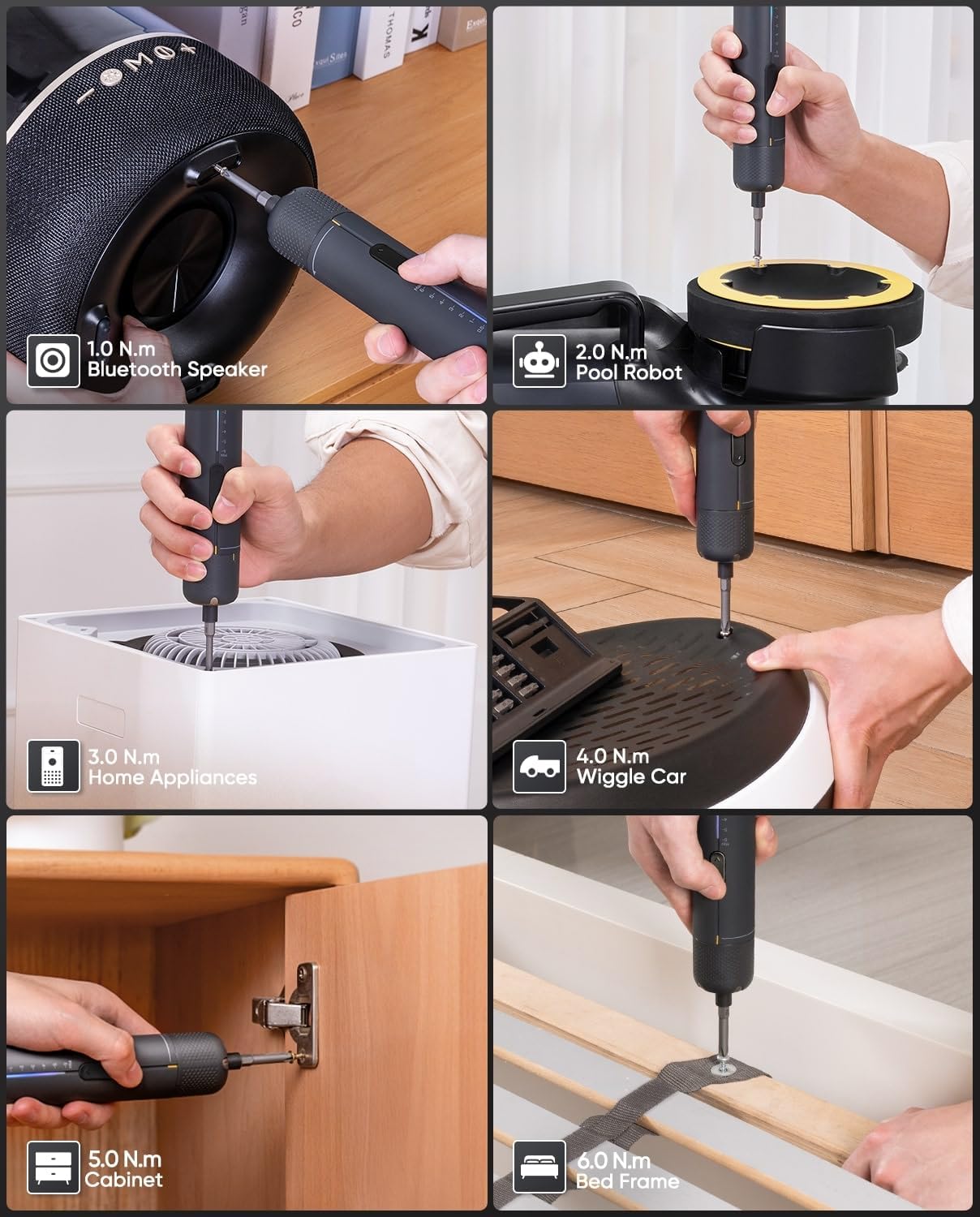

Mapulogalamu Othandiza

The Fanttik S2 Pro Max is versatile for various tasks:

• 0.5 N·m: Ideal for delicate electronics like Bluetooth speakers.
• 1-2 N·m: Suitable for small appliances or toys.
• 3-4 N·m: Good for home appliances and light furniture assembly.
• 5-6 N·m: For heavier tasks like cabinet installation or bed frame assembly.

Mavidiyo Ovomerezeka Ovomerezeka

Kusamalira

• Keep the screwdriver and its accessories clean and dry.
• Store the device in its pop-up case to protect the bits and the screwdriver from damage.
• Regularly check bits for wear and replace as necessary to ensure optimal performance and prevent screw damage.
• Pewani kuyatsa chipangizocho ku kutentha kwambiri kapena kuwala kwa dzuwa.

Kusaka zolakwika

Screwdriver Osayatsa

• Onetsetsani kuti batire yachajidwa. Lumikizani ku gwero lamagetsi pogwiritsa ntchito chingwe cha Type-C.
• Check if the power button is fully pressed.

Torque yosakwanira

• Verify the torque setting. Increase the torque level if the current setting is too low for the task.
• Ensure the bit is correctly seated and not worn out.
• Check battery level; low battery can reduce torque output.

Bit Slipping or Stripping Screws

• Ensure you are using the correct bit type and size for the screw head.
• Apply firm, steady pressure while operating the screwdriver.
• Reduce the torque setting if screws are being stripped.

Zofotokozera

Chitsimikizo ndi Thandizo

For warranty information and customer support, please refer to the official Fanttik webtsamba kapena funsani makasitomala awo mwachindunji. Sungani risiti yanu yogulira ngati umboni wa kugula kwa madandaulo a chitsimikizo.
