1. Mawu Oyamba
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of the RGBlink NDI PTZ Camera Controller (RGBBKT). This device is designed for professional video production environments, offering comprehensive control over various PTZ cameras using multiple protocols.

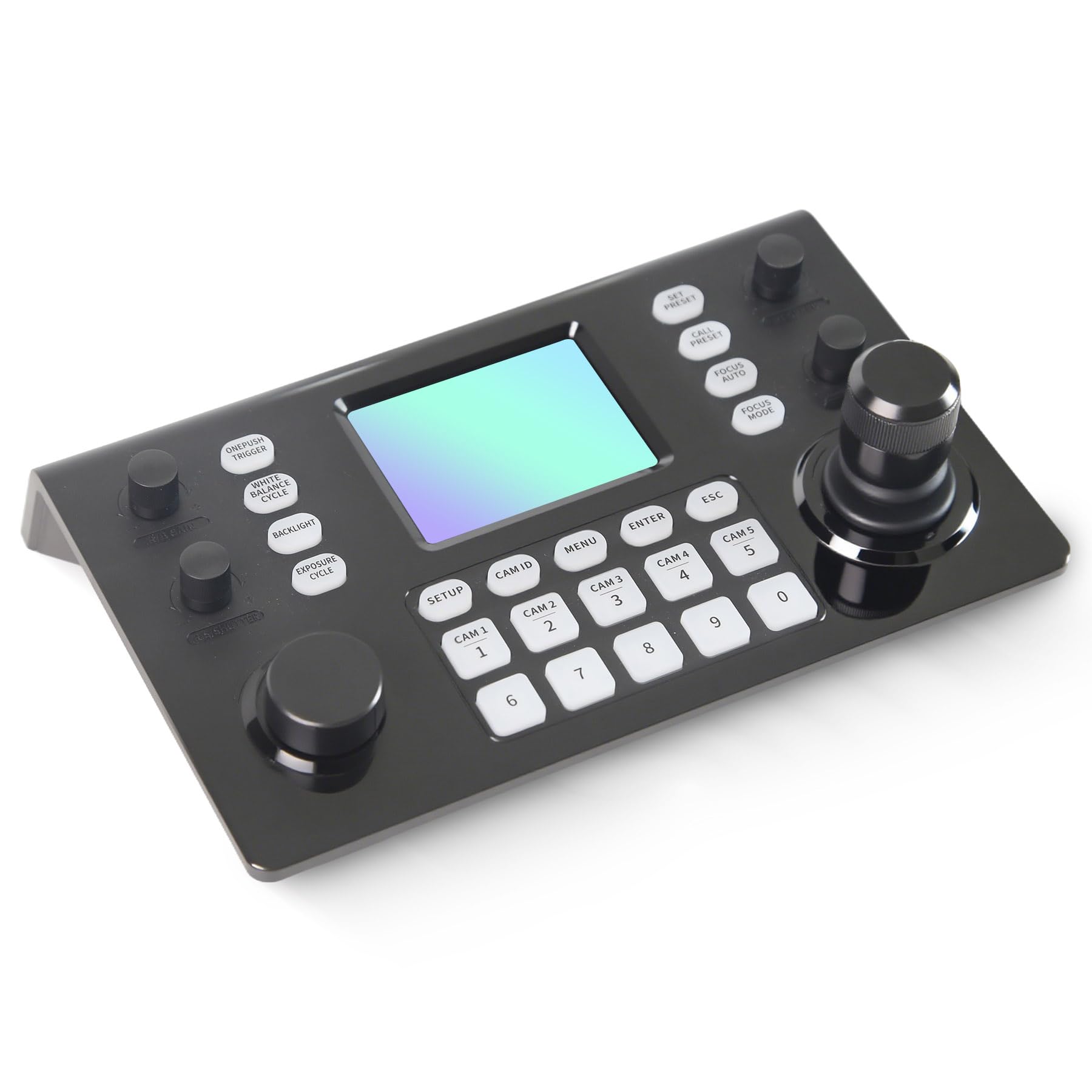

Image 1.1: RGBlink NDI PTZ Camera Controller (RGBBKT).
2. Kukhazikitsa
Follow these steps to set up your RGBlink NDI PTZ Camera Controller.
2.1 Kutsegula ndi Kuyendera Koyamba
- Chotsani mosamala zigawo zonse zapakhomo.
- Onetsetsani kuti zinthu zonse zomwe zalembedwa pamndandanda wazolongedza zilipo.
- Inspect the controller for any signs of physical damage. If damage is found, contact your dealer immediately.
2.2 Kulumikiza Controller
The RGBlink NDI PTZ Camera Controller supports various connection methods for power and camera control.
- Mphamvu pa Ethernet (PoE): Connect a single RJ45 Ethernet cable from a PoE-enabled network switch to the controller's LAN port. This provides both power and network connectivity.
- Adaputala Yamagetsi Yakunja: If PoE is not available, connect the provided power adapter to the DC 12V input port and to a power outlet.
- Kulumikiza kwa kamera:
- Ethernet (IP Control): Connect PTZ cameras to the same network as the controller via RJ45 Ethernet cables. The controller supports VISCA over IP, ONVIF v2.42, and NDI v5.5 protocols.
- Serial Control: For cameras supporting serial communication, use RS232, RS422, or RS485 interfaces. Connect the appropriate cables from the controller's serial ports to the cameras.
Image 2.1: Rear panel connections including RS-232, RS-422, LAN (PoE), and Power Input.
Chithunzi 2.2: Eksample connection diagram showing PTZ Controller, PoE Switch, PTZ Cameras, Audio Mixer, and Computer.
Image 2.3: Diagram illustrating IP camera connections via a network switch.
2.3 Kusintha Kwapaintaneti
For IP-based camera control, ensure the controller and cameras are on the same network segment. The controller supports automatic detection of NDI-enabled PTZ cameras.
- Access the controller's web mawonekedwe polowetsa adilesi yake ya IP mu a web browser. (Refer to the device's display or network tools to find the IP address).
- The default login credentials are typically 'admin' with a blank password. It is recommended to set a strong password immediately.
- M'kati mwa web interface, configure camera protocols (e.g., ONVIF, VISCA over IP) and enter camera-specific user credentials if required.
Image 2.4: NDI|HX camera search and control interface on the controller.
3. Ntchito
This section details the operational functions of the RGBlink NDI PTZ Camera Controller.
3.1 Paview ya Controls
The controller features a 3.49" LCD display, a 3D joystick, various knobs, and a numeric keypad for intuitive control.
Image 3.1: The controller's 3.49-inch LCD display.
Chithunzi 3.2: Zambiri view of the 3D joystick and multi-function knobs.
Image 3.3: Layout of the controller's buttons and numeric keypad area.
3.2 Kusankha Kamera
- Quick Select Buttons: Use the dedicated CAM 1-5 buttons for quick selection of up to 5 cameras.
- Nambala Keypad: For cameras beyond the quick select buttons (up to 255), press the CAM ID button, then enter the camera number using the numeric keypad, and press LOWANI.
Image 3.4: The controller's ability to manage multiple cameras.
3.3 Kuwongolera kwa PTZ
- Zosangalatsa: The 3D joystick controls pan (left/right), tilt (up/down), and zoom (rotate the joystick).
- PT Speed Knob: Adjusts the gimbal movement speed for pan and tilt.
- Zoom Knob: Provides precise zoom control, especially useful in preview mode.
3.4 Image Parameter Adjustment
- IRIS/SHUTTER Knob: Rotate to adjust aperture and shutter speed. Press to switch control modes.
- R/B GAIN Knob: Rotate to adjust red and blue gain. Press to switch control modes.
- FOCUS Button: Dinani pa AUTO FOCUS button to switch the camera to auto focus mode.
- EXPOSURE Button: Cycles through exposure modes (Aperture Priority, Shutter Priority, Gain Priority, Manual Exposure, Auto Exposure).
- BACKLIGHT Button: Toggles the camera's backlight mode.
- WHITE BALANCE CYCLE Button: Cycles through white balance modes (Indoor, Outdoor, Manual, Auto).
- ONE PUSH TRIGGER Button: When white balance is set to "One-Push White Balance", press this button to initiate a one-push white balance calibration.
Image 3.5: Functions of buttons and knobs on the left side of the controller.
Image 3.6: Functions of buttons and knobs on the right side of the controller, including preset controls.
3.5 Kukonzekera
- SET PRESET Button: Press to enter preset position mode. Use the numeric keys to enter the preset number (0-9) and press LOWANI kupulumutsa. Press ESC kutuluka.
- CALL PRESET Button: Press to enter preset recall mode. Use the numeric keys to enter the preset number (0-9) and press LOWANI to recall. Press ESC kutuluka.
- The controller supports saving and recalling up to 255 presets per camera.
3.6 Kusanthula Menyu
- Menu batani: Press to open or close the camera settings menu. In menu control mode, the joystick controls navigation (up, down, left, right), LOWANI confirms selections, and ESC acts as a back button.
4. Kusamalira
Proper maintenance ensures the longevity and optimal performance of your RGBlink NDI PTZ Camera Controller.
4.1 Kuyeretsa
- Use a soft, dry cloth to clean the exterior of the controller.
- Kwa dothi louma, pang'ono dampPakani nsalu ndi madzi kapena njira yoyeretsera yofatsa, yosapsa.
- Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the surface and display.
- Ensure no liquids enter the device through openings or ports.
4.2 Kusungirako
- Ngati simukugwiritsa ntchito kwa nthawi yayitali, sungani chowongolera pamalo ozizira komanso ouma kutali ndi dzuwa lachindunji komanso kutentha kwambiri.
- Tetezani chipangizo ku fumbi ndi chinyezi.
5. Mavuto
Gawoli limapereka mayankho kuzinthu zomwe mungakumane nazo.
5.1 Palibe Mphamvu
- Onani Gwero la Mphamvu: Ensure the power adapter is securely connected to both the controller and a working power outlet.
- PoE Check: If using PoE, verify that the Ethernet cable is connected to a PoE-enabled port on your network switch and that the switch is powered on.
- Kukhulupirika kwa Cable: Inspect the power cable and Ethernet cable for any damage.
5.2 Cannot Control Camera
- Kulumikizana kwa Netiweki: For IP cameras, ensure the controller and cameras are on the same network and can communicate. Check network cables and IP addresses.
- Kusagwirizana kwa Protocol: Verify that the correct control protocol (e.g., VISCA over IP, ONVIF, NDI, Pelco-D/P) is selected on both the controller and the camera.
- Kamera ID: Ensure the correct camera ID is selected on the controller.
- Zidziwitso Zolowera: If the camera requires authentication, confirm that the correct username and password are configured in the controller's web mawonekedwe.
- Kulumikizana kwa seri: For serial control, check RS232/RS422/RS485 cable connections and ensure baud rates and addresses match between the controller and camera.
- Firmware: Ensure both the controller and cameras have the latest firmware installed. Visit the RGBlink support webtsamba zosintha.
5.3 LCD Display Issues
- Palibe Chiwonetsero: Onetsetsani kuti chowongolera chayatsidwa.
- Chiwonetsero cha Dim: Check if there are any brightness settings on the controller that can be adjusted.
6. Zofotokozera
| Mbali | Tsatanetsatane |
|---|---|
| Chitsanzo | RGBBKT |
| Makulidwe (L x W x H) | 11.4 x 7.8 x 5.9 mainchesi (pafupifupi 290 x 200 x 150 mm) |
| Kulemera | 2.2 mapaundi (pafupifupi 1 kg) |
| Onetsani | 3.49 "LCD |
| Malamulo Oyendetsa | VISCA over IP, ONVIF v2.42, NDI v5.5, Pelco-D/P |
| Zolumikizirana | RS232, RS422, RS485, RJ45 Ethernet (PoE) |
| Camera Capacity | Up to 255 PTZ cameras |
| Kulowetsa Mphamvu | PoE or DC 12V (external adapter) |
| Joystick | High-precision Hall sensor 3D joystick |
Image 6.1: Controller dimensions and typical usage environments.
Image 6.2: Visual representation of supported protocols including RJ45, RS485, RS422, RS232, ONVIF, NDI, Pelco-D, Pelco-P, and Visca.
7. Chiwonetsero cha Kanema wa Zamalonda
Watch the official product video for a visual demonstration of the RGBlink NDI PTZ Camera Controller's features and operation.
Video 7.1: Official demonstration of the RGBlink PTZ Camera Controller Joystick, showcasing multi-camera control and key features.
8. Chitsimikizo ndi Thandizo
For warranty information, technical support, or service inquiries, please contact RGBlink customer service or visit their official webmalo.
- Wopanga: Xiamen RGBlink Science & Technology Co.,Ltd.
- Ovomerezeka Webtsamba: www.rgblink.com (Chidziwitso: Ichi ndi chosungira URL, please refer to your product packaging or official documentation for the correct support webmalo.)
- Zambiri zamalumikizidwe: Refer to the RGBlink official website for the most current contact details for technical support and warranty claims.
