Panasonic Lamdash PRO 5-Blade Electric Shaver ES-L571D-K Instruction Manual

1. Mawu Oyamba

Zikomo pogulaasing the Panasonic Lamdash PRO 5-Blade Electric Shaver, model ES-L571D-K. This advanced shaver is designed to provide a gentle yet deep shave, even on thick beards, utilizing a 5-blade system, a high-speed linear motor, and intelligent Lamdash AI+ technology. This manual provides essential information for safe and effective use, setup, operation, and maintenance of your new shaver.

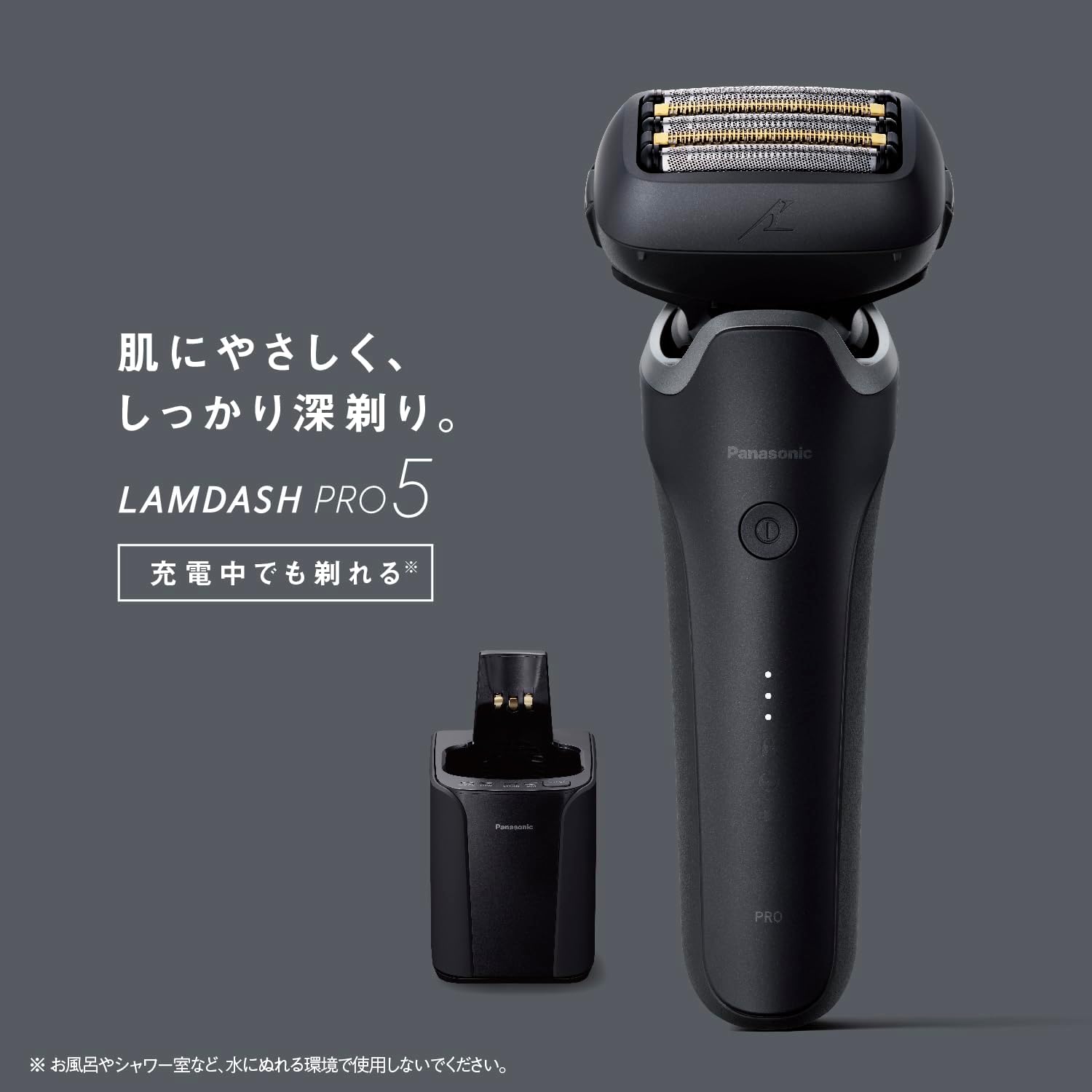

Image: The Panasonic Lamdash PRO 5-Blade Electric Shaver ES-L571D-K in matte black.

2. Zambiri Zachitetezo

Please read all safety instructions carefully before using the product to prevent injury or damage.

• This electric shaver uses a high-speed linear motor. Improper handling or use may result in cuts. Always use with care.
• When operating the automatic cleaning and charging system, exercise extreme caution as it involves both water and electricity. Ensure the unit is properly placed and connections are secure.
• Do not disassemble, repair, or modify the shaver or its components. Contact authorized service personnel for any repairs.
• Sungani chometa ndi zida zake kutali ndi ana.
• Do not use the shaver if the blades or outer foil are damaged, as this may cause skin irritation or injury.

3. Zamkatimu Phukusi

Onetsetsani kuti zonse zomwe zalembedwa pansipa zikuphatikizidwa mu phukusi lanu:

• Chipinda Chachikulu Chometera
• Automatic Cleaning and Charging System
• Thumba
• Dedicated Cleaning Solution (1 pack)
• Chingwe cha USB (Mtundu-A mpaka Mtundu-C)
• Adapter ya AC
• Mafuta Opatulika
• Kuyeretsa Burashi

Image: All accessories included with the Panasonic Lamdash PRO 5-Blade Electric Shaver.

4. Zinthu Zogulitsa

4.1. 5-Blade System

The shaver features a sophisticated 5-blade system designed for a close and comfortable shave. This system includes specialized blades to capture and cut various types of beard hair effectively.

Chithunzi: Mwatsatanetsatane view of the 5-blade cutting system.

4.2. High-Speed Linear Motor

Equipped with Panasonic's fastest linear motor, the shaver delivers approximately 14,000 strokes per minute. This powerful motor ensures consistent cutting performance, even when shaving thick beards, without a drop in power.

Chithunzi: Chamkati view highlighting the high-speed linear motor mechanism.

4.3. Mutu Wosinthasintha wa 5D

The shaver head moves in five directions (5D) to closely follow the contours of your face, including complex areas like under the chin. This flexibility ensures maximum skin contact for an efficient and gentle shave.

Image: A visual representation of the shaver's 5D head movement for contour following.

4.4. Lamdash AI+ Technology

Lamdash AI+ technology automatically detects beard density approximately 233 times per second and adjusts shaving power accordingly. This ensures optimal power for different beard areas, providing a smooth shave while minimizing skin irritation. Note: The sensor's reaction (change in drive sound) may vary depending on beard density or stubble inside the shaver head, but this is not a malfunction.

Image: A close-up of the circuit board, representing the Lamdash AI+ intelligent control system.

4.5. Automatic Cleaning and Charging System

The included automatic cleaning and charging system simplifies daily maintenance. With a single switch, it performs cleaning, heated drying, and charging, ensuring your shaver is always hygienic and ready for use. The system also boasts over 99% sterilization.

Image: The automatic cleaning and charging system, showing its compact design and functionality.

4.6. Waterproof Design (IPX7 Standard)

The shaver is designed to be waterproof (IPX7 standard), allowing for easy and thorough cleaning under running water. This feature ensures hygiene and extends the life of your shaver.

Image: The shaver head with water droplets, demonstrating its waterproof capability.

5. Kukhazikitsa

5.1. Kulipira Koyamba

1. Connect the AC adapter to the automatic cleaning and charging system.
2. Place the shaver securely into the cleaning and charging system.
3. Plug the AC adapter into a power outlet. The charging indicator on the shaver will illuminate.
4. Allow approximately 1 hour for a full rapid charge. The shaver can also be used while charging.

Image: The shaver unit correctly placed in its automatic cleaning and charging system.

5.2. Kukonzekera Kugwiritsa Ntchito Koyamba

Before the first shave, ensure the shaver is fully charged. It is recommended to apply a small amount of the dedicated oil to the blades for optimal performance and longevity.

6. Malangizo Ogwiritsira Ntchito

6.1. Kumeta

1. Dinani batani lamphamvu kuti muyatse shaver.
2. Hold the shaver at a right angle (90 degrees) to your skin.
3. Gently stretch your skin with your free hand and move the shaver slowly against the direction of beard growth.
4. The Lamdash AI+ will automatically adjust power based on beard density.
5. For optimal results, avoid pressing too hard, as this can cause skin irritation.

6.2. Wet/Dry Shaving

The ES-L571D-K supports both dry shaving and wet shaving with foam or gel. For a more comfortable shave, especially for sensitive skin, wet shaving is recommended.

7. Kusamalira

7.1. Makinawa Kuyeretsa

1. After shaving, remove any large debris from the shaver head.
2. Place the shaver into the automatic cleaning and charging system.
3. Ensure the dedicated cleaning solution is in the system.
4. Press the cleaning button. The system will initiate a cleaning cycle, followed by heated drying and charging.

7.2. Manual Cleaning (Water Wash)

For quick cleaning, the shaver can be rinsed directly under running water. Ensure the shaver is turned off before rinsing. Do not use the automatic cleaning and charging system or AC adapter during water washing.

7.3. Kusintha Tsamba

For continued optimal shaving performance, it is recommended to replace the outer foil and inner blades approximately every 1.5 years. The replacement interval may vary depending on usage. Refer to the product packaging for compatible replacement blades.

Image: The shaver head with the outer foil and inner blades detached, illustrating the replacement process.

7.4. Kupaka mafuta

Regularly apply a drop of the dedicated oil to the blades to maintain smooth operation and extend their lifespan. This is especially important after manual cleaning.

8. Mavuto

• Kumeta sikuyatsa: Ensure the shaver is fully charged. If using the AC adapter, check the connection.
• Kuchepetsa kumeta: Clean the shaver head thoroughly. Consider replacing the outer foil and inner blades if they are old or damaged.
• Phokoso lachilendo pakugwira ntchito: Check for any trapped beard stubble or debris in the shaver head. If the noise persists, it may indicate wear on the blades or motor.
• Automatic cleaning system not working: Ensure the shaver is correctly seated in the system and that there is sufficient cleaning solution. Check power connection.
• Kuyabwa pakhungu: Ensure you are not pressing too hard. Try wet shaving with foam or gel. If irritation persists, consult a dermatologist.

If you encounter issues not covered here, please refer to the full user manual or contact Panasonic customer support.

9. Zofotokozera

10. Chitsimikizo ndi Thandizo

Katunduyu amabwera ndi chitsimikizo cha wopanga cha miyezi 12 kuyambira tsiku logula. Chonde sungani umboni wanu wogula kuti mugwiritse ntchito chitsimikizo.

Kuti mudziwe zambiri, kulembetsa katundu, kapena view other Panasonic products, please visit the official Panasonic store:

Pitani ku Sitolo ya Panasonic

For technical support or service inquiries, please contact Panasonic customer service through their official webtsamba lanu kapena zambiri zolumikizirana zomwe zaperekedwa mu chikalata chanu cha chitsimikizo.
