VEVOR 120FT x 7/8 Inch Drain Cleaner Machine Instruction Manual

1. Malangizo Ofunika Otetezedwa

Read and understand all safety warnings and instructions before operating this drain cleaner machine. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

General Safety

• Chitetezo cha Magetsi: Ensure the machine is connected to a properly grounded outlet. Do not operate in wet conditions or near standing water. Keep all electrical connections dry.
• Zida Zodzitetezera Payekha (PPE): Always wear heavy-duty gloves, eye protection, and appropriate work clothing. Loose clothing or jewelry can become entangled in rotating parts.
• Malo Ogwirira Ntchito: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Keep bystanders, especially children, away while operating the machine.
• Kugwira Chingwe: Never grasp the rotating cable with bare hands. Always use the provided gloves. Be aware of the cable's movement and potential for kinking or whipping.
• Kukhazikika Kwamakina: Ensure the machine is placed on a stable, level surface before operation to prevent tipping.
• Kuyimitsa Mphamvu: Chotsani pulagi yamagetsi kuchokera pa soketi yamagetsi musanasinthe chilichonse, kusintha zowonjezera, kapena kusunga makinawo.

2. Zamalonda Zathaview

The VEVOR 120FT x 7/8 Inch Drain Cleaner Machine is designed for clearing blockages in various pipes. It features a powerful motor, durable steel cables, and interchangeable cutters for efficient operation.

Figure 2.1: VEVOR 120FT x 7/8 Inch Drain Cleaner Machine

2.1 Zofunika Kwambiri

• Zingwe Zachitsulo Zapamwamba Kwambiri: Includes 120 FT x 7/8" and 18 FT x 3/8" 65Mn steel cables, treated for resistance against breakage, twisting, and corrosion. Suitable for 1.9 to 6-inch pipes.
• Manual Feeding Control: Allows precise control over cable feed speed and force.
• CW/CCW Control: Forward and reverse rotation for effective clog removal and cable retraction.
• Versatile Cutters: Six quick-change cutters are included for various types of blockages.
• Yamphamvu 420W Motor: Copper wire motor provides high efficiency and conductivity for tackling tough clogs.
• Zomangamanga Zolimba: Built with high-strength industrial plastic for long-term reliability.

2.2 Zigawo Zophatikizidwa

• 1 x Drain Cleaner Machine Unit
• 1 x 120 FT x 7/8 Inch Steel Cable
• 1 x 18 FT x 3/8 Inch Steel Cable
• 6 x Interchangeable Cutters (various shapes)
• 1 x Hex Wrench
• 1 x Chida Chowonjezera
• 1 x Pawiri ya Magolovesi

Figure 2.2: Included Cutters for various blockages

Figure 2.3: High-Quality Steel Cables

3. Kukhazikitsa ndi Msonkhano

3.1 Kutulutsa

1. Chotsani mosamala zigawo zonse zapakhomo.
2. Inspect the machine and all accessories for any damage that may have occurred during shipping. Contact customer support if any damage is found.
3. Onetsetsani kuti zigawo zonse zomwe zalembedwa zilipo.

3.2 Attaching Cutters

1. Select the appropriate cutter for the type of blockage and pipe size.
2. Using the installation tool, securely attach the chosen cutter to the end of the drain cable. Ensure it is firmly locked in place to prevent detachment during operation.

4. Malangizo Ogwiritsira Ntchito

4.1 Kukonzekera Malo Ogwirira Ntchito

1. Clear the area around the drain opening.
2. Place the drain cleaner machine on a stable, flat surface near the drain.
3. Wear appropriate personal protective equipment, including heavy-duty gloves and eye protection.

4.2 Cable Insertion and Feeding

1. Insert the cable with the attached cutter into the drain opening.
2. Engage the manual feeding control system. This allows you to control the speed and force with which the cable enters the pipe.
3. Use the CW (Clockwise) setting on the control switch for forward rotation to advance the cable into the blockage.
4. Apply gentle pressure to feed the cable. Do not force the cable, as this can cause kinking or damage.
5. Once the blockage is cleared, switch to the CCW (Counter-Clockwise) setting to retract the cable from the pipe.
6. Always maintain a firm grip on the cable with gloved hands during feeding and retraction.

Figure 4.1: Operating the Drain Cleaner Machine

4.3 Kanema Wovomerezeka

5. Kusamalira

5.1 Kuyeretsa

• After each use, disconnect the machine from power.
• Clean the cable and cutters thoroughly to remove any debris, grease, or residue. Use a stiff brush and water, then dry completely to prevent rust.
• Wipe down the machine housing with a damp nsalu. Osagwiritsa ntchito mankhwala ankhanza kapena zotsukira abrasive.

5.2 Kusungirako

• Store the machine and cables in a dry, cool place, away from direct sunlight and moisture.
• Ensure cables are properly coiled and secured to prevent tangling.

5.3 Kusamalira Chingwe

• Regularly inspect cables for signs of wear, kinks, or damage. Replace damaged cables immediately.
• Lubricate cables periodically with a rust-inhibiting oil to extend their lifespan.

6. Mavuto

This section provides solutions to common issues encountered during operation. For problems not listed here, contact VEVOR customer support.

7. Zofotokozera

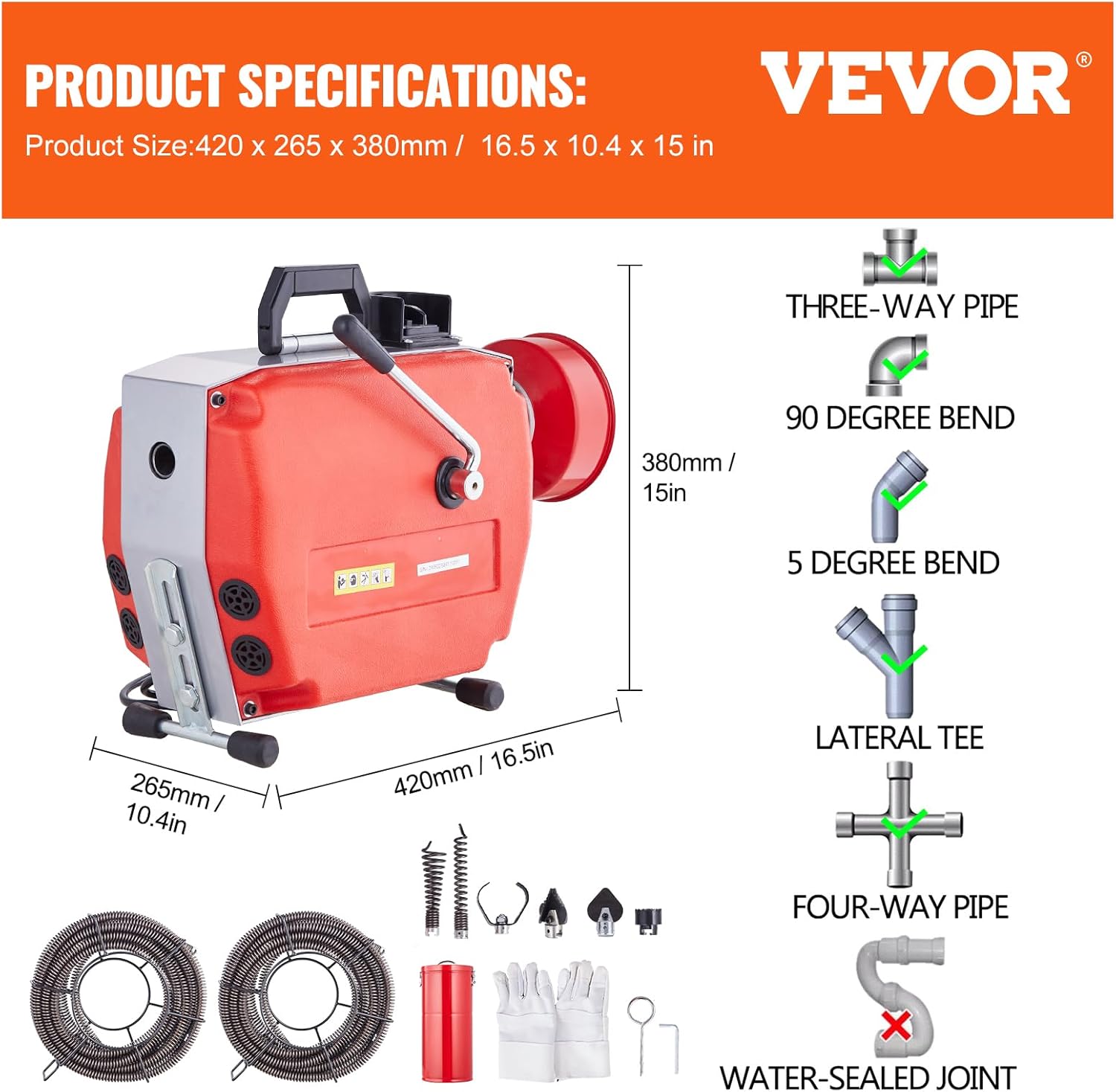

Figure 7.1: Product Dimensions and Pipe Compatibility

8. Chitsimikizo ndi Thandizo

Kuti mudziwe zambiri za chitsimikizo, chithandizo chaukadaulo, kapena mafunso antchito, chonde onani VEVOR yovomerezeka webtsamba kapena funsani makasitomala a VEVOR mwachindunji. Sungani chiphaso chanu chogulira chachitetezo.
