TIDRADIO TD-M8s Walkie Talkies Instruction Manual

Mawu Oyamba

Thank you for choosing the TIDRADIO TD-M8s Walkie Talkies. This manual provides essential information for the safe and efficient operation of your two-way radios. Please read it thoroughly before use and keep it for future reference.

Zomwe zili mu Bokosi

Image: Package contents of the TIDRADIO TD-M8s Walkie Talkies.

• 8 x TIDRADIO TD-M8s Walkie Talkies
• 1 x Six-Way Multi-Gang Charger and Adapter
• 8 x Acoustic Walkie Talkie Earpieces
• 8 x Battery (pre-installed or separate)
• 8 x Zapadera za Lamba
• 4 x Zingwe Zopangira USB
• 2 x USB Wall Chargers (dual line)
• 1 x Buku Logwiritsa Ntchito

Zathaview

The TIDRADIO TD-M8s walkie talkies are designed for reliable communication across various environments. Key features include:

• 22 Preset Channels: Ideal for group management, supporting up to 22 distinct groups.
• Zachinsinsi Zowonjezera: Each channel supports 50 CTCSS tones and 105 CDCSS codes for secure and private communication.
• Hands-Free Operation (VOX): Voice-Activated Transmission eliminates the need for manual PTT button pressing.
• Scanning Feature: Automatically detects nearby active frequencies for monitoring.
• Kuchepetsa Phokoso: Squelch function minimizes background interference for clearer audio.
• Kulankhulana kwa Patali: Up to 3 miles (5 km) in open terrain with minimal obstructions; 0.6–1.8 miles (1–3 km) in urban environments. Actual range may vary based on environmental conditions and obstacles.
• Battery Yapamwamba: 1500mAh battery provides 8-12 hours of continuous use or 72-120 hours of standby time on a full charge.
• Lambulani Ubwino Wamawu: Equipped with a high-performance built-in speaker for loud, crystal-clear audio in noisy environments.
• Mapangidwe Opepuka komanso Opepuka: Ultra-compact (5.3"x2.9"x0.6") and lightweight (0.2lb), fitting easily in a shirt pocket. Ergonomic curved design for comfortable grip.
• Zomangamanga Zolimba: Military-grade ABS + TPU material, 1.5m drop-resistant certified. IP52 water and dust resistant for harsh environments.
• Antena Yogwirizana: Compact yet powerful integrated antenna for crystal-clear long-range communication without snagging.
• Multi-Gang Charger: Professional 6-slot charging station for simultaneous charging of multiple radios.
• Acoustic Earpiece: Hands-free earpiece with integrated microphone for private and clear communication in high-noise environments.
• Ntchito Zosiyanasiyana: Suitable for hospitality, outdoor adventures, industrial sites, large venues, retail, and security teams.

Chithunzi: Zathaview of TD-M8s features.

Image: Long range and gain antenna for enhanced signal.

Image: Crystal clear sound quality.

Image: Enhanced privacy with CTCSS/DCS codes.

Kuyambapo

Chizindikiritso cha Chigawo

Image: Labeled components of the TD-M8s Walkie Talkie.

1. Mlongoti: Kutumiza ndi kulandira chizindikiro.
2. Mphamvu / Voliyumu Knob: Tembenuzani kuti muzimitse/zima wailesi ndikusintha voliyumu.
3. PTT (Kankhani-ku-Kulankhula) Batani: Dinani ndikugwira kuti mupereke mawu anu.
4. Channel Buttons (+/-): Press to change the operating channel.
5. Wolankhula: Kuti mulandire mawu.
6. Microphone (MIC): For transmitting your voice.
7. Doko Lowonjezera: Zolumikizira makutu kapena zingwe zojambulira mapulogalamu.
8. USB-C Charging Port: Kuchaja mwachindunji.
9. Kuwala kwa Chizindikiro: Imawonetsa mphamvu ndi malo opangira.

Kulipiritsa Mawailesi

Ensure radios are turned off before charging. The TD-M8s offers two charging methods:

• Multi-Gang Charger: Place up to 6 walkie talkies into the dedicated slots on the multi-gang charger. Connect the charger to a power outlet using the provided adapter. The indicator light on each slot will show charging status (e.g., red for charging, green for fully charged).
• USB-C Direct Charging: For individual radios, connect a USB-C charging cable to the port on the side of the walkie talkie. You can use the provided USB wall chargers, a car charger, power bank, or laptop for charging.

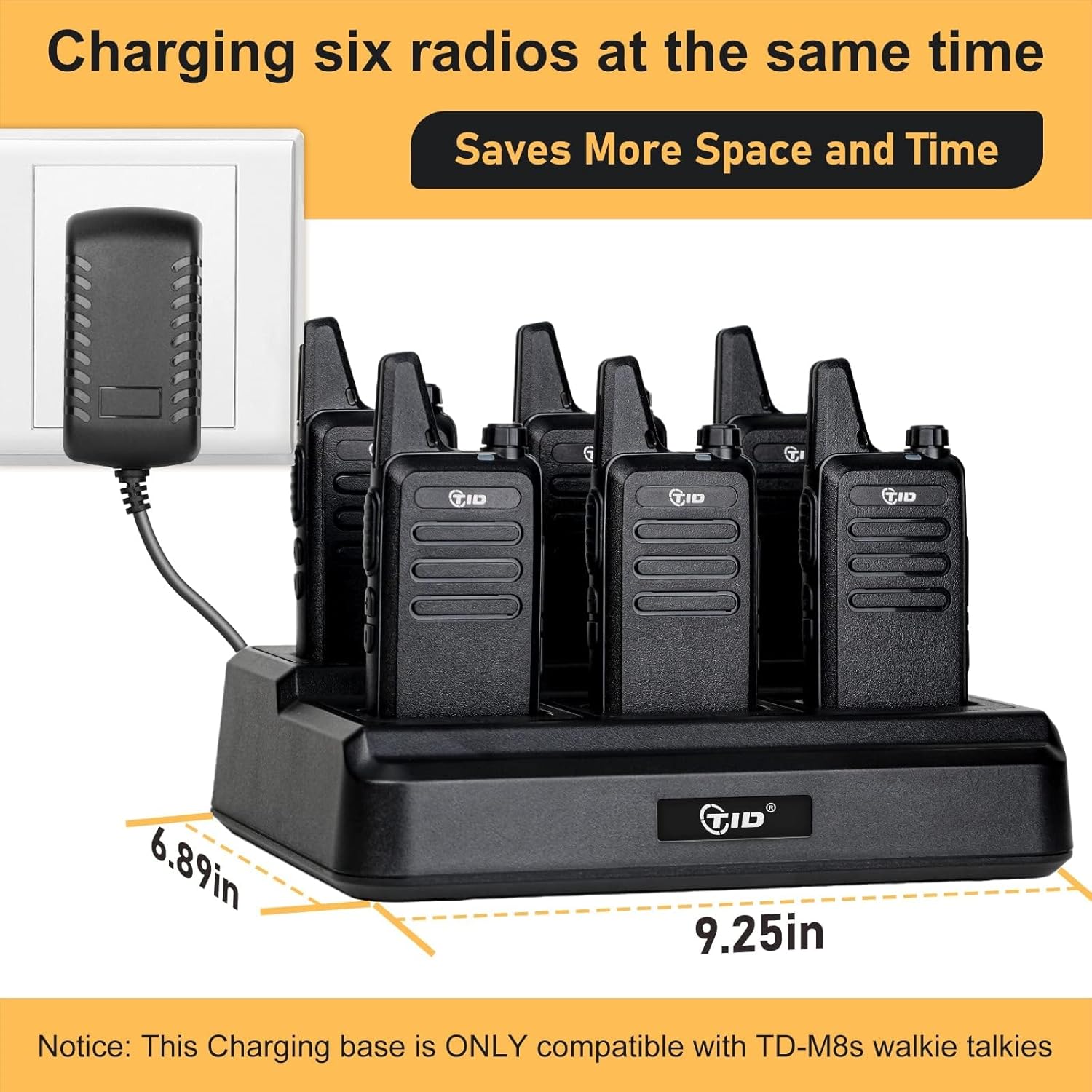

Image: 6-Way Multi-Gang Charger in use.

Chithunzi: Kuchuluka kwa batri ndi zambiri zolipirira.

Image: Various USB direct charging options.

Kulumikiza Belt Clip

Align the belt clip with the designated grooves on the back of the walkie talkie and slide it down until it clicks securely into place. To remove, push the release tab and slide the clip upwards.

Image: Walkie Talkie with detachable belt clip.

Kulumikiza Lanyard

Thread the lanyard loop through the small hole located near the top of the walkie talkie. Secure the lanyard by passing the larger end through the loop and pulling it tight.

Basic Operation

Kuyatsa/Kuzimitsa ndi Kusintha kwa Voliyumu

Rotate the Power/Volume knob clockwise to turn the radio on. Continue rotating clockwise to increase the volume. Rotate counter-clockwise to decrease the volume and turn the radio off.

Kusankha Channel

Use the Channel (+) and (-) buttons on the side of the radio to select your desired channel. Ensure all radios intended for communication are set to the same channel.

Kutumiza (PTT)

Kuti mutumize mawu anu, dinani ndikusunga batani la PTT. Lankhulani momveka bwino mu maikolofoni. Tulutsani batani la PTT kuti musiye kutumiza mawu ndi kumvetsera yankho.

VOX Function (Voice-Activated Transmission)

The VOX feature allows for hands-free conversations without pressing the PTT button. To activate/deactivate VOX:

1. Zimitsani wailesi.
2. Press and hold the PTT and Channel (-) buttons simultaneously.
3. While holding, turn on the radio. You will hear a voice prompt indicating "VOX ON" or "VOX OFF".

Image: Instructions for activating VOX function.

Earpiece Use

Connect the acoustic earpiece to the accessory port on the side of the walkie talkie. The earpiece features an integrated microphone and a finger PTT button for private and clear communication, especially in noisy environments.

Image: Acoustic Earpiece features.

Zofotokozera

Kusaka zolakwika

If you encounter issues with your TD-M8s walkie talkies, consider the following common solutions:

• Palibe Mphamvu: Ensure the battery is fully charged and properly inserted. Rotate the Power/Volume knob to turn on the device.
• Sitingathe Kutumiza/Kulandira: Verify that all radios are on the same channel and that the PTT button is being pressed correctly. Check for obstructions or excessive distance between radios.
• Kusamveka Bwino Kwambiri: Adjust the volume. Ensure the microphone and speaker are not obstructed. Check for strong interference sources.
• VOX Sikugwira Ntchito: Ensure VOX is activated as per the instructions in the Basic Operation section. Adjust VOX sensitivity if available (refer to full product manual for advanced settings).
• Kulipiritsa: Ensure the charger is properly connected to a power source and the radio is correctly seated in the charging slot or the USB-C cable is firmly connected.

For further assistance, please contact TID customer support.

Kusamalira

To ensure the longevity and optimal performance of your walkie talkies:

• Keep the radios clean and dry. Wipe with a soft, damp nsalu.
• Avoid exposing the radios to extreme temperatures, direct sunlight, or harsh chemicals.
• Store radios and accessories in a cool, dry place when not in use.
• Do not attempt to disassemble or modify the radios, as this will void the warranty.

Chitsimikizo & Thandizo

The TIDRADIO TD-M8s Walkie Talkies come with a 1-year warranty. For warranty claims, technical support, or any product-related concerns, please contact TID customer service. We are committed to product quality and customer satisfaction.
