DALY BMS 8S 24V 200A LiFePO4 Battery Protection Module Instruction Manual

1. Zamalonda Zathaview

The DALY BMS 8S 24V 200A LiFePO4 Battery Protection Module is designed to manage and protect 8-series LiFePO4 battery packs. It ensures safe and efficient operation by monitoring various parameters such as voltage, current, and temperature, providing essential protection functions.

Chithunzi 1: Patsogolo view of the DALY BMS 8S 24V 200A module.

Chithunzi 2: Chopindika view of the DALY BMS 8S 24V 200A module.

Figure 3: DALY BMS 8S 24V 200A module showing connection ports.

2. Zofotokozera

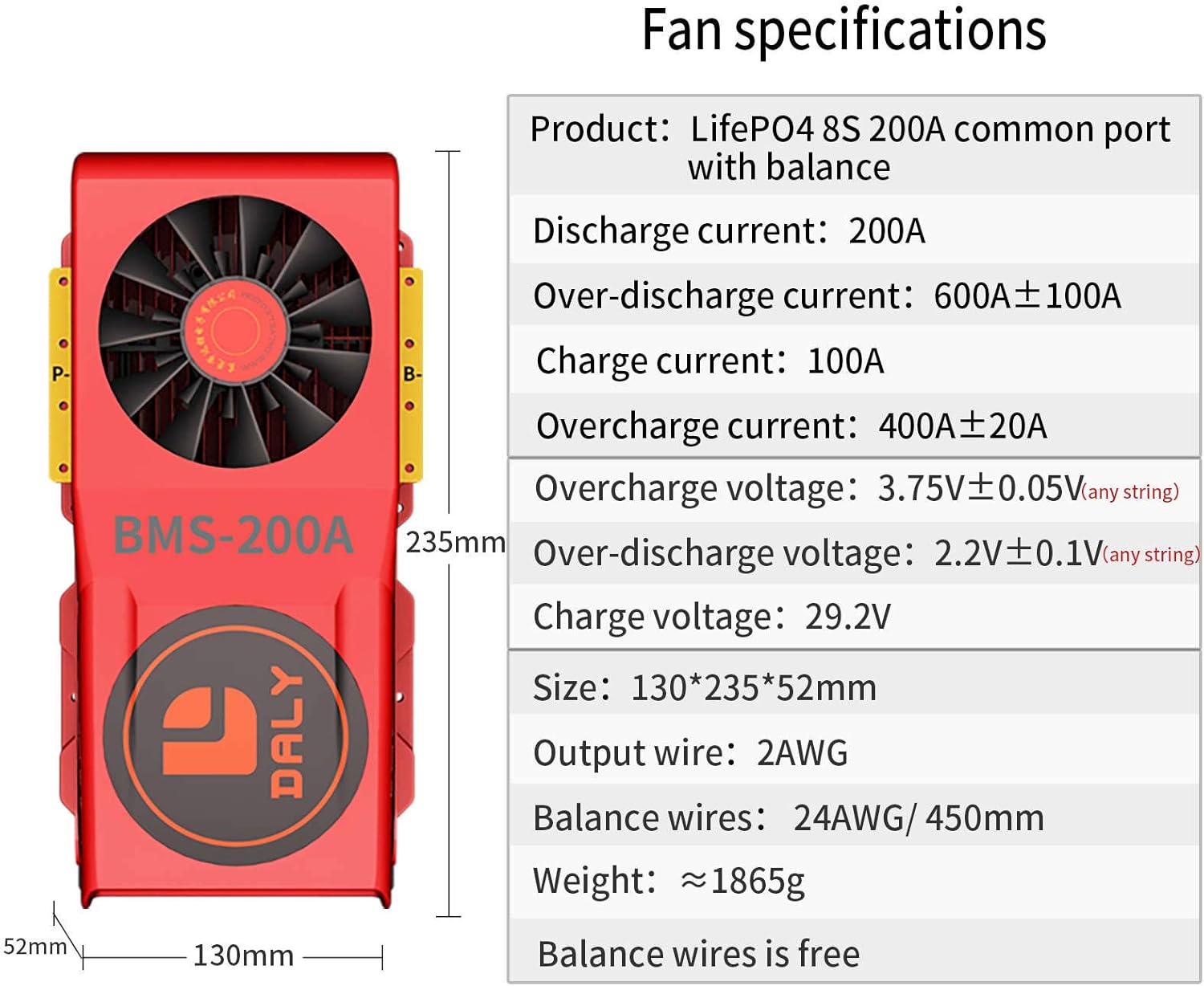

Figure 4: Fan specifications for the DALY BMS.

Detailed Product Parameters (LiFePO4 8S BMS)

Figure 5: Part 1 of the detailed product parameters for LiFePO4 8S BMS.

Figure 6: Part 2 of the detailed product parameters for LiFePO4 8S BMS.

Detailed Product Parameters (LiFePO4 8S Smart BMS)

Figure 7: Part 1 of the detailed product parameters for LiFePO4 8S Smart BMS.

Figure 8: Part 2 of the detailed product parameters for LiFePO4 8S Smart BMS.

3. Kapangidwe kazinthu

The DALY BMS is engineered with multiple layers for optimal performance and protection. Key components include:

• Insulated Flame-Retardant Shell: Provides external protection and safety.
• Smart and Powerful Fan: Ensures efficient cooling to maintain optimal operating temperatures.
• Pure Aluminum Heat Sink: Dissipates heat effectively from internal components.
• High Current Copper Plate: Features a 3mm pure copper interface for robust current handling.
• DALY BMS Control Board: The core intelligence for battery management and protection.
• Thermal Conductive Compound: Enhances heat transfer between components and heat sinks.
• Insulation Fixing Plate: Secures and insulates internal components.

Chithunzi 9: Chaphulika view illustrating the internal structure of the DALY BMS.

4. Mawaya Malangizo

Proper wiring is critical for the safe and correct operation of your DALY BMS. Please follow these steps carefully. Tools needed: soldering machine (suggested 662°F/350°C), scissors, double-sided tape, tin wire, multimeter.

4.1. Preparation and Sampling Point Determination

Before starting, ensure you have all necessary tools and materials. The sampling points on your battery pack must be correctly identified and marked. For a 10-battery series (e.g., 8S LiFePO4), there will be 11 sampling points, including the total negative (B-) and total positive (B+) terminals.

4.2. Balance Lead Connection

Zindikirani: Inu ayenera disconnect balance wires end and BMS connection port before welding black and red balance wires on the battery pack.

1. After assembling your LiFePO4 battery pack, mark battery B-, B1, B2,..., until battery pack B+.
2. Fix balance wires on the battery pack where the black wire can reach battery pack B-. The 1st red wire can reach B1, 2nd red wire can reach B2,..., until the last red wire can reach battery pack B+ with double-sided tape.
3. Cut off excess length with scissors, welding the black wire's end at Battery pack B-, welding the 1st red wire's end at B1, 2nd red wire's end at B2,..., until the last red wire's end at Battery pack B+.
4. Measure balance wires white end's 2 neighboring metal points voltage; if voltage range is 2.0V-3.6V, that means wiring is correct.
5. Connect balance wires white end with BMS connection port, use multimeter ohm detection function and turn on the buzzer; connect multimeter's black test pen with BMS P- and multimeter's red test pen with BMS B-, when there is beep sound, the BMS circuit conduction is OK and continue.
6. Use multimeter DC voltage function to measure battery pack's voltage (between Battery B- and Battery B+) and through BMS output voltage (between BMS B- and Battery B+), if they are the same voltage, the BMS can work normally already and fix BMS to avoid poor contact due to severe vibration during use.

Figure 10: Diagram illustrating the balance lead wiring process for the DALY BMS.

5. Common Wiring Errors and Troubleshooting

Incorrect wiring can lead to serious issues, including damage to the BMS or battery pack. Be aware of these common errors:

• Incorrect Wiring Harness: Using a wiring harness not specifically designed or compatible with your DALY BMS model can cause connection issues, poor contact, or even short circuits. Always use the provided or recommended wiring.
• Inserting BMS Before Wiring: Never insert the BMS connection port before all balance wires are correctly soldered and verified. Doing so can cause immediate damage to the BMS due to voltage spikes or incorrect current paths.
• Virtual Welding/Poor Solder Joints: Inadequate soldering can result in poor electrical contact, leading to voltage drops, overheating, and unreliable performance. Ensure all solder joints are strong and secure.
• No Inspection After Wiring: Failing to inspect and verify all connections and voltages with a multimeter after wiring but before connecting the BMS can lead to catastrophic failure. Always check individual cell voltages and the overall pack voltage.
• Incorrect P- and B- Line Connection: The P- line (output/charge negative) and B- line (total battery negative) must be connected correctly. Reversing these or connecting them improperly can cause short circuits within the protective plate, burn out sampling lines, or damage the entire protective plate.

6. Mapulogalamu

DALY BMS modules are versatile and suitable for a wide range of applications requiring robust battery management. These include:

• Two-wheelers (e.g., electric bikes, scooters)
• AGV Forklifts
• Ma scooters amagetsi
• Photovoltaic Energy Storage Systems
• RV Energy Storage Systems
• Home Energy Storage Systems

Figure 11: Visual representation of various applications for DALY BMS products.

Chithunzi 12: Eksample of a DALY BMS in an energy storage application with mobile app monitoring.

7. Chitetezo

• Always wear appropriate personal protective equipment (PPE) when handling batteries and performing wiring.
• Onetsetsani kuti maulumikizidwe onse ndi otetezeka komanso otetezedwa kuti mupewe mabwalo aafupi.
• Do not attempt to modify the BMS or battery pack beyond the instructions provided.
• Keep the BMS and battery pack away from moisture, heat, and flammable materials.
• In case of any malfunction or unusual behavior, disconnect the battery pack immediately and seek professional assistance.

8. Chitsimikizo ndi Thandizo

For warranty information, technical support, or any inquiries regarding your DALY BMS, please refer to the official DALY website or contact your authorized dealer. Ensure you retain your proof of purchase for warranty claims.
