Ferroli TITANO SMART E61157MA 150 Liters Horizontal Electric Storage Water Heater User Manual

1. Mawu Oyamba

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Ferroli TITANO SMART E61157MA 150 Liters Horizontal Electric Storage Water Heater. This appliance is designed for efficient hot water supply, featuring advanced electronic control and durable components. Please read this manual carefully before installation and use to ensure safe and optimal performance.

Image 1.1: Ferroli TITANO SMART E61157MA 150 Liters Horizontal Electric Storage Water Heater. This image shows the exterior of the horizontal water heater unit.

2. Zofunika Zachitetezo

Always observe the following safety precautions to reduce the risk of injury, electric shock, fire, or damage to the appliance.

• Kuyika Kwaukatswiri: Installation and maintenance must be performed by qualified personnel in accordance with local regulations and this manual.
• Kulumikiza Magetsi: The appliance requires a three-pole electrical connection. Ensure proper grounding. The supplied cable does not include a plug; a qualified electrician must connect it to the power supply.
• Hot Water Hazard: Water heated by the appliance can reach high temperatures and cause scalding. Exercise caution when using hot water. Consider installing a thermostatic mixing valve to prevent excessively hot water at outlets.
• Vuto Lothandizira Mpweya: The water heater is equipped with an 8 bar safety valve. This valve must be installed and maintained correctly to prevent excessive pressure buildup. Do not block or tampndi valve chitetezo.
• Kutuluka kwa Madzi: Regularly inspect the appliance for any signs of water leaks. Address any leaks immediately to prevent property damage.
• Ana ndi Anthu Ovutika: Chipangizochi sichinapangidwe kuti chigwiritsidwe ntchito ndi anthu (kuphatikiza ana) omwe ali ndi mphamvu zochepa zakuthupi, zamaganizo, kapena zamaganizo, kapena opanda chidziwitso ndi chidziwitso, pokhapokha ngati atapatsidwa kuyang'anira kapena malangizo okhudza kugwiritsa ntchito chipangizocho ndi munthu amene ali ndi udindo wowateteza. .

3. Zamkatimu Phukusi

Before proceeding with installation, verify that all components are present and undamaged:

• 1 x Ferroli TITANO SMART E61157MA 150 Liters Horizontal Electric Storage Water Heater
• 1 x 8 Bar Safety Valve
• 1 x Three-pole Electrical Cable (without plug)
• 1 x Buku la Malangizo

4. Kuyika

Installation must be carried out by a qualified professional. Incorrect installation can lead to serious injury or damage to the appliance and property.

Malo Okhazikika a 4.1

• The water heater is designed for horizontal wall mounting. Ensure the wall structure is capable of supporting the full weight of the water heater when filled with water (approximately 185 kg for the 150L model).
• Choose a location that allows for easy access for maintenance and servicing.
• Avoid locations where freezing temperatures may occur.

4.2 Kulumikiza kwa mapaipi

• Connect the cold water inlet and hot water outlet pipes according to local plumbing codes.
• Install the supplied 8 bar safety valve on the cold water inlet. Ensure the discharge pipe from the safety valve is routed to an open drain.
• It is recommended to install a dielectric union (componente dielettrico) on the water connections to prevent corrosion.
• For enhanced safety and comfort, consider installing a thermostatic mixing valve (rubinetto termostatico) at the hot water outlet to regulate the temperature of the water delivered to taps.

4.3 Kulumikizitsa Magetsi

• The appliance is supplied with a three-pole electrical cable. This cable must be connected to a dedicated electrical circuit by a qualified electrician.
• Onetsetsani kuti magetsi akufanana ndi voltage and frequency specified on the appliance's rating label.
• Install an appropriate circuit breaker and a residual current device (RCD) for electrical protection.

5. Ntchito

The Ferroli TITANO SMART E61157MA features a 'SMART' electronic control system for optimized performance.

5.1 Kuyamba Koyamba

1. Before switching on the power, ensure the water heater is completely filled with water. Open a hot water tap in your home until water flows freely, indicating the tank is full and air has been purged.
2. Once filled, switch on the electrical power supply to the water heater.

5.2 Control Panel

The control panel features luminous LEDs to display operating temperatures and status, along with convenient buttons for managing the water heater settings.

• Zizindikiro za LED: These lights show the current water temperature and indicate when the heating element is active or if there is a system status message.
• Mabatani Owongolera: Use these buttons to adjust the desired water temperature or to activate specific operating modes, such as the 'SMART' function. Refer to the detailed instructions in the full manual for specific button functions.

5.3 SMART Electronic Control

The 'SMART' electronic control optimizes energy consumption based on your usage patterns. When activated, the system learns your hot water demands and adjusts heating cycles to provide hot water efficiently, reducing electricity costs.

6. Kusamalira

Regular maintenance ensures the longevity and efficient operation of your water heater. Maintenance should be performed by qualified personnel.

6.1 Kuwunika pafupipafupi

• Vavu yachitetezo: Periodically check the 8 bar safety valve to ensure it is not blocked and operates correctly. Follow the manufacturer's instructions for testing.
• Magnesium Anode: The magnesium anode protects the tank from corrosion. It should be inspected and replaced periodically, typically every 1-2 years, depending on water quality. The 5-bolt flange facilitates access for this maintenance.
• Zinthu Zotenthetsera: The 'Blue Forever' electric heating elements are designed with a special surface treatment to reduce scale buildup. However, in areas with very hard water, periodic inspection and cleaning may still be beneficial.
• General Inspection: Check for any signs of leaks, corrosion, or damage to the external casing and connections.

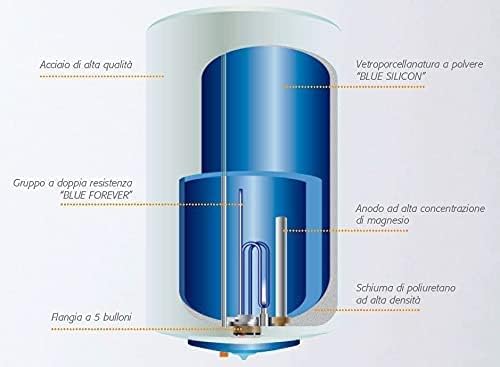

Image 6.1: Internal components of the Ferroli water heater. This diagram illustrates the high-quality steel tank, "BLUE SILICON" vitrified porcelain coating, "BLUE FOREVER" double heating element, high-concentration magnesium anode, high-density polyurethane foam insulation, and 5-bolt flange.

Image 6.2: Comparison of heating elements. This image demonstrates the reduced scale buildup on "BLUE FOREVER" heating elements compared to untreated elements after operation, highlighting their anti-scale properties.

7. Mavuto

This section provides solutions to common issues. For problems not listed here or if solutions do not resolve the issue, contact qualified service personnel.

8. Mafotokozedwe aukadaulo

The following table provides detailed technical specifications for the Ferroli TITANO SMART E61157MA 150 Liters Horizontal Electric Storage Water Heater.

Image 8.1: Detailed specifications table for Ferroli TITANO SMART models. This table provides technical data including capacity, electrical power, reheating time, mixed water volume, dimensions, and weight for various models, including the 150 Liters Horizontal (150 SHO BF) model.

9. Chitsimikizo ndi Thandizo

For warranty information, technical assistance, or to locate an authorized service center, please refer to the warranty card included with your product or visit the official Ferroli webmalo. Sungani risiti yanu yogulira ngati umboni wa kugula kwa madandaulo a chitsimikizo.

Ferroli Customer Service: For specific contact details, please visit www.ferroli.com or consult your local dealer.
