Indesit XWDE-961480XSGCC Washer Dryer Instruction Manual

1. Mawu Oyamba

Thank you for choosing the Indesit XWDE-961480XSGCC Washer Dryer. This appliance is designed to provide efficient and convenient washing and drying of your laundry. To ensure safe and optimal performance, please read this instruction manual thoroughly before using the appliance. Keep this manual for future reference.

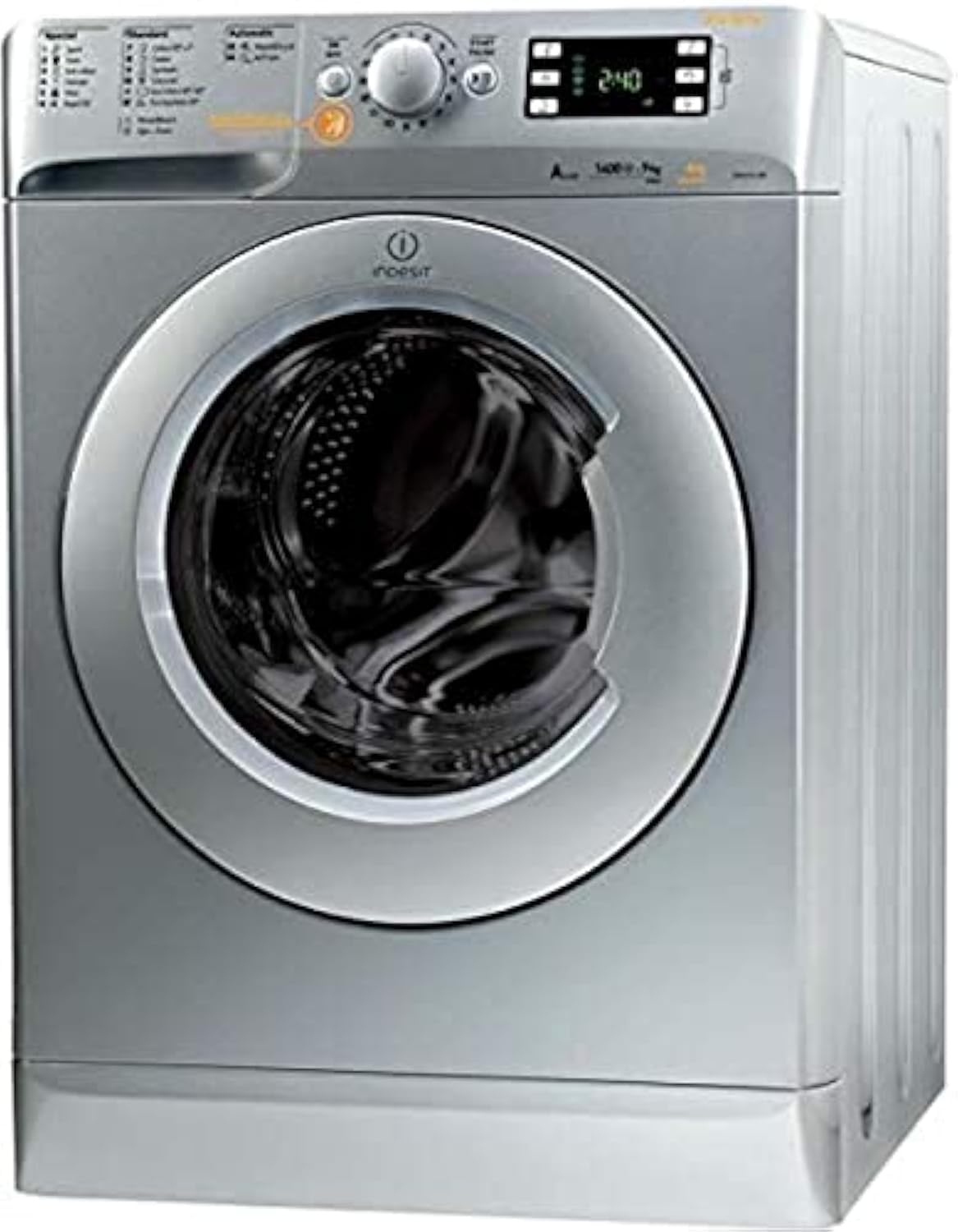

Figure 1: Indesit XWDE-961480XSGCC Washer Dryer

2. Zambiri Zachitetezo

Nthawi zonse tsatirani njira zodzitetezera mukamagwiritsa ntchito zida zamagetsi kuti muchepetse ngozi yamoto, kugwedezeka kwamagetsi, ndi kuvulala kwa anthu.

• Werengani malangizo onse musanagwiritse ntchito chipangizocho.
• Chipangizochi sichinapangidwe kuti chigwiritsidwe ntchito ndi anthu (kuphatikiza ana) omwe ali ndi mphamvu zochepa zakuthupi, zamaganizo kapena zamaganizo, kapena opanda chidziwitso ndi chidziwitso, pokhapokha ngati atapatsidwa kuyang'anira kapena malangizo okhudza kugwiritsa ntchito chipangizocho ndi munthu yemwe ali ndi udindo wowateteza.
• Ana ayenera kuyang'aniridwa kuti awonetsetse kuti samasewera ndi chipangizocho.
• Osayika kapena kusunga chipangizochi pamalo pomwe nyengo ili bwino.
• Osateroampndi zowongolera.
• Osakonza kapena kusintha mbali ina iliyonse ya chipangizocho kapena kuyesa kugwiritsa ntchito chilichonse pokhapokha ngati mwalangizidwa m'mawu a kasamalidwe ka ogwiritsa ntchito kapena m'malangizo osindikizidwa okhudza kukonza kwa ogwiritsa ntchito omwe mumawamvetsetsa komanso omwe muli ndi luso lowatsatira.
• Osagwiritsa ntchito zofewa za nsalu kapena mankhwala kuti athetse static pokhapokha atalangizidwa ndi wopanga zofewetsa nsalu kapena mankhwala.
• Do not use heat to dry articles containing plastic, foam rubber, or rubber-like materials.
• Clean the lint screen before or after every load.
• Musalole ana kusewera pa chipangizo kapena pa chipangizo. Kuyang'anitsitsa ana ndikofunikira pamene chipangizocho chikugwiritsidwa ntchito pafupi ndi ana.
• Chidacho chisanachotsedwe kuntchito kapena kutayidwa, chotsani chitseko cha chipinda chochapirapo.
• Osafika pachidacho ngati chubu kapena cholumikizira chikuyenda.
• Do not install or operate the appliance if it is damaged. Contact qualified service personnel for repair.
• Nthawi zonse chotsani chipangizocho ku magetsi musanachiyeretse kapena kukonza chilichonse.

3. Zamalonda Zathaview

3.1 Zofunika Kwambiri

The Indesit XWDE-961480XSGCC Washer Dryer offers a range of features designed for effective and convenient laundry care:

Chithunzi 2: Zomwe Zapangidwira

• Wash&Dry 45: A fast, effective washing and drying action for lightly soiled items, completing the cycle in just 45 minutes.
• Antistain Option: Provides powerful stain removal on heavily soiled items.
• Antiodours Option: Effectively removes smoke, sweat, and fried food smells, ideal for freshening up garments.
• Express Cleaning: Delivers perfectly clean clothes in just 60 minutes.
• Special Sport: Designed for non-sportswear, offering a clean kit in 45 minutes.
• Autoclean Cycle: Cleans the washer dryer at the touch of a button, maintaining hygiene without harsh chemicals.
• Kuchedwa: Schedule laundry to start at a convenient time.
• Zokoma: Gentle care for delicate garments, providing excellent washing and drying.
• thonje 40: A super cycle for cottons, removing stains at 40°C in 45 minutes.
• Dark Cycle: Helps keep dark garments vibrant and revitalized.
• Wool Care: Extremely delicate action to wash woolen garments, certified by Woolmark.

3.2 zigawo

Familiarize yourself with the main components of your washer dryer:

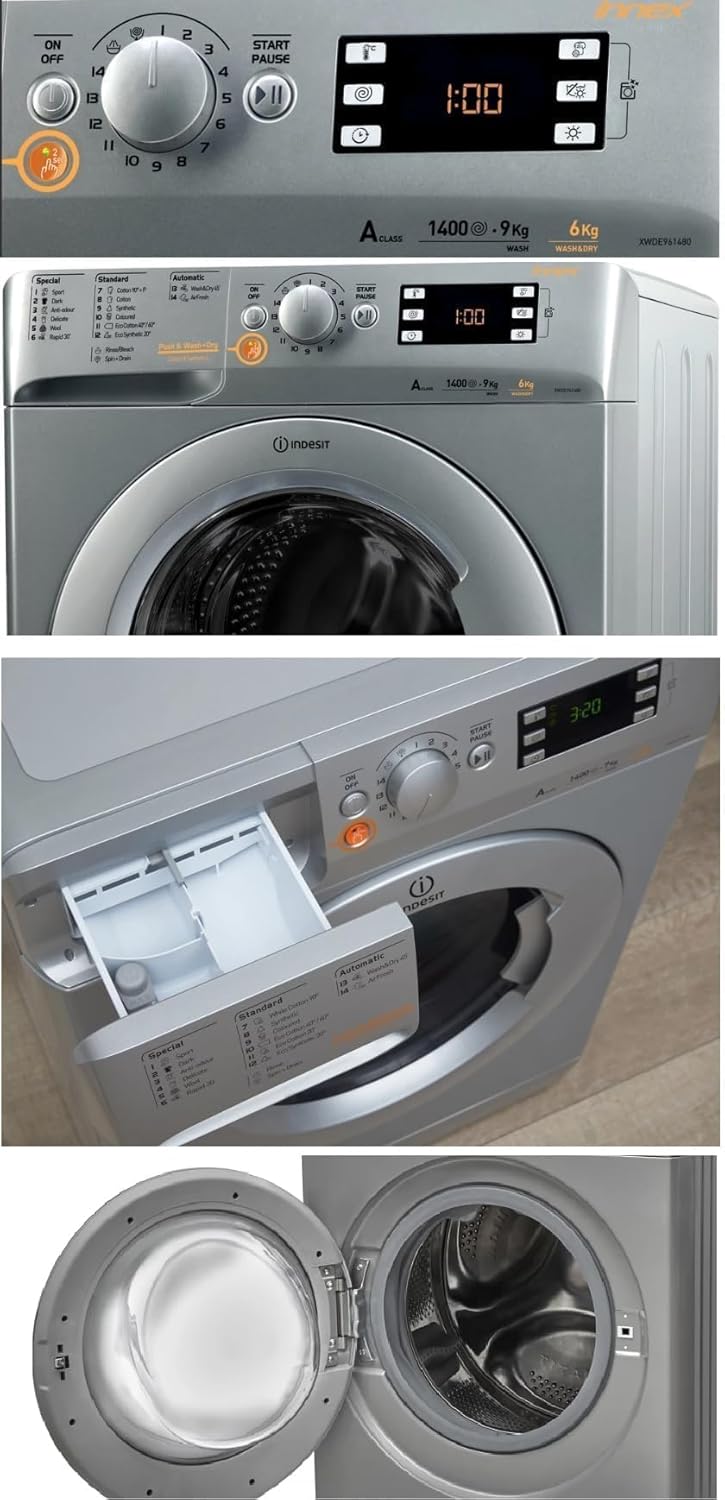

Figure 3: Control Panel, Detergent Dispenser, and Drum

• Gawo lowongolera: Located on the front, it features a program selector dial, function buttons, and a digital display for cycle information.
• Chipinda cha Detergent Dispenser: Pull-out drawer for adding detergent, fabric softener, and other laundry additives.
• Ng'oma: Stainless steel drum where laundry is washed and dried.
• Khomo: Front-loading door for accessing the drum.
• Sefa: Located at the bottom front (behind a cover), used to collect lint and small objects.

4. Kukhazikitsa

4.1 Kutsegula ndi Kuyika

• Chotsani mosamala zinthu zonse zoyikapo.
• Remove the transport bolts from the rear of the appliance. Keep them for future transport.
• Position the washer dryer on a firm, level floor. Adjust the feet to ensure the appliance is stable and level.

4.2 Makulidwe

Ensure adequate space for installation and operation. The dimensions of the appliance are:

Chithunzi 4: Makulidwe a Zamalonda

• Kuzama: 60.5cm pa
• M'lifupi: 73.41cm pa
• Kutalika: 85cm pa
• Kulemera kwake: 73.41kg pa

4.3 Kulumikizana kwa Madzi ndi Kukhetsa

• Connect the water inlet hose to a cold water tap with a 3/4" thread. Ensure a tight seal.
• Ikani payipi yotulutsira madzi m'chitoliro choyimirira kapena pamwamba pa sinki, kuonetsetsa kuti yakhazikika bwino kuti isasunthike panthawi yogwira ntchito.

4.4 Kulumikizitsa Magetsi

• Lumikizani chipangizocho pamagetsi okhazikika.
• Onetsetsani kuti voltage and frequency match the specifications on the rating plate of the appliance.
• Osagwiritsa ntchito zingwe zowonjezera kapena ma adapter angapo.

4.5 Kugwiritsa Ntchito Koyamba

Before washing clothes for the first time, run a short wash cycle without laundry and with a small amount of detergent to clean the drum and remove any manufacturing residues.

5. Malangizo Ogwiritsira Ntchito

5.1 Kutsegula Zochapa

• Open the door and load laundry into the drum. Do not overload the machine.
• The maximum wash capacity is 9 kg, and the maximum dry capacity is 6 kg.
• Tsekani chitseko mwamphamvu.

5.2 Kuwonjezera Zotsukira ndi Zowonjezera

• Chotsani kabati yochotsera detergent.
• Onjezani kuchuluka koyenera kwa zotsukira kuchipinda chachikulu chochapira.
• Add fabric softener to the designated compartment (if desired).
• Tsekani kabati ya dispenser modekha.

5.3 Kusankha Pulogalamu

Turn the program selector dial to choose the desired wash or wash & dry program. The digital display will show the estimated cycle time.

• Common Programs: Cotton, Delicate, Quick Wash, Rinse.
• Mapulogalamu apadera: Wash&Dry 45, Antistain, Antiodours, Express Cleaning, Special Sport, Autoclean, Delay, Delicates, Cotton 40, Dark Cycle, Wool Care.

5.4 Mabatani Ogwira Ntchito

Use the function buttons on the control panel to customize your wash cycle, such as adjusting temperature, spin speed, or selecting additional options like Antistain or Delay.

5.5 Kuyamba Kuzungulira

• Mukasankha pulogalamuyo ndi zosankha zilizonse zomwe mukufuna, dinani batani la Start/Imani pang'ono kuti muyambe kuzungulira.
• The door will lock, and the cycle will commence.

5.6 Kutha kwa Mzunguliro

At the end of the cycle, the appliance will signal with an audible tone (if enabled) and the display will indicate completion. The door will unlock, allowing you to remove your laundry.

6. Kusamalira

Kusamalira nthawi zonse kumatsimikizira kuti chowumitsira chanu cha makina ochapira chimakhala ndi moyo wautali komanso chimagwira ntchito bwino.

6.1 Kuyeretsa Kunja

• Pukuta kunja ndi chofewa, damp nsalu.
• Osagwiritsa ntchito zotsukira abrasive kapena solvents.

6.2 Kuyeretsa Makina Otsuka Zotsukira

• Tulutsani kabati ya dispenser kwathunthu.
• Muzimutsuka ndi madzi othamanga kuti muchotse zotsalira zilizonse za sopo kapena zofewetsa.
• Sambani m'nyumba ya kabati ya dispenser ndi burashi.
• Lowetsani kabati.

6.3 Kuyeretsa Zosefera

• Periodically clean the filter located at the bottom front of the appliance.
• Ikani chidebe chosaya pansi pa fyuluta kuti mugwire madzi aliwonse otsalira.
• Unscrew the filter slowly and remove any lint or foreign objects.
• Tsukani fyulutayo pansi pa madzi othamanga ndipo muyibwezeretse bwino.

6.4 Drum Cleaning (Autoclean Cycle)

Use the dedicated Autoclean cycle to maintain the cleanliness of the drum and internal components. Run this cycle without any laundry or detergent.

7. Mavuto

Musanalankhule ndi kasitomala, onani tebulo lotsatirali kuti mudziwe mavuto omwe amafala komanso mayankho ake:

If the problem persists after attempting these solutions, please contact customer service.

8. Zofotokozera

Technical specifications for the Indesit XWDE-961480XSGCC Washer Dryer:

9. Chitsimikizo ndi Thandizo

For warranty information, please refer to the warranty card included with your appliance or contact your retailer. Keep your proof of purchase for warranty claims.

If you encounter any issues not covered in the troubleshooting section or require technical assistance, please contact Indesit customer support. Contact details can typically be found on the Indesit official webtsamba kapena zolemba zanu zogula.
