1. Mawu Oyamba
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Allen-Bradley SMC Plus Smart Motor Controller, Model 150-A240NBD Series A. The SMC Plus is designed for advanced motor control applications, offering soft starting, soft stopping, and various protection features for three-phase AC induction motors. Please read this manual thoroughly before attempting to install or operate the device.
2. Zambiri Zachitetezo
CHENJEZO: This equipment should only be installed, adjusted, and serviced by qualified electrical personnel familiar with the construction and operation of this type of equipment and the hazards involved. Failure to observe this precaution could result in severe personal injury or death.
- Always disconnect power before working on the controller or motor.
- Onetsetsani kuti zida zili ndi maziko oyenera.
- Verify all wiring connections are secure and correct according to wiring diagrams.
- Do not operate the controller with damaged components or exposed wiring.
- Observe all local and national electrical codes.
- The images in this manual depict a unit that shows signs of wear, including a cracked plastic case and rust. Always inspect your specific unit for any physical damage or corrosion before installation and operation.
3. Zamalonda Zathaview
The Allen-Bradley SMC Plus Smart Motor Controller is a solid-state soft starter designed to provide controlled acceleration and deceleration of three-phase induction motors. It reduces mechanical stress on machinery and electrical stress on the power system during motor starting and stopping. Key features include:
- Multiple starting and stopping modes.
- Motor protection features (overload, underload, phase loss, etc.).
- Built-in bypass contactor for reduced heat dissipation during run.
- Diagnostic capabilities.

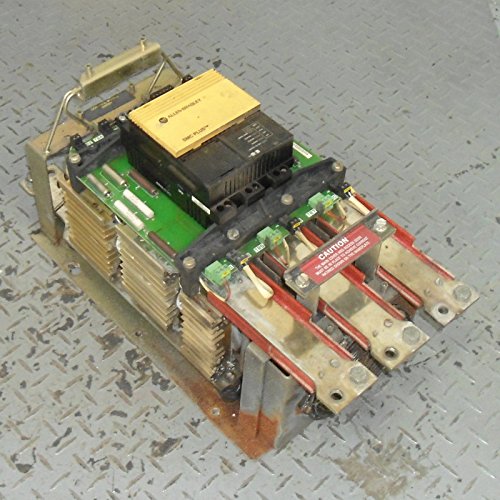

Chithunzi 3.1: Pamwamba view of the Allen-Bradley SMC Plus Smart Motor Controller. This image displays the main control module, circuit boards, and large power terminals. Note the visible signs of wear and rust on the base.

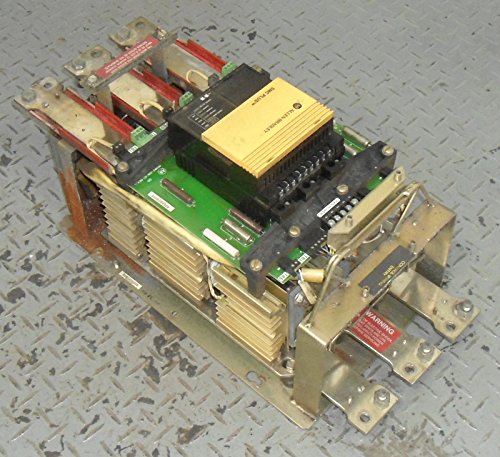

Chithunzi 3.2: Chopindika view of the SMC Plus controller, showing the power terminals and internal components from a different perspective. Rust on the metal base is also apparent in this view.
4. Kukhazikitsa ndi Kuyika
Proper installation is critical for the safe and reliable operation of the SMC Plus controller. Refer to the detailed wiring diagrams provided with your specific unit for precise connections. The following are general steps:
- Kukwera: Securely mount the controller in a suitable enclosure, ensuring adequate ventilation and clearance for wiring and maintenance.
- Wiring Wamagetsi: Connect the incoming three-phase power supply to the line terminals (L1, L2, L3) and the motor leads to the motor terminals (T1, T2, T3). Ensure correct phase rotation.
- Kuwongolera Wiring: Connect control inputs (e.g., start/stop signals, fault reset) and outputs (e.g., run status, fault indication) as required by your application.
- Kuyika pansi: Connect the controller to a protective earth ground.
- Kukonzekera kwa Parameter: After wiring, power up the control circuit and configure the necessary operating parameters (e.g., motor full load amps, acceleration/deceleration times, protection settings) using the controller's interface or programming software.

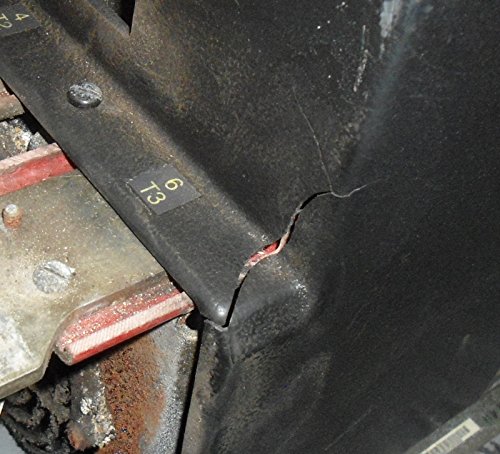

Chithunzi 4.1: Pafupi view showing a crack in the plastic casing of the controller. Such damage should be inspected and addressed before installation to ensure safety and proper function.

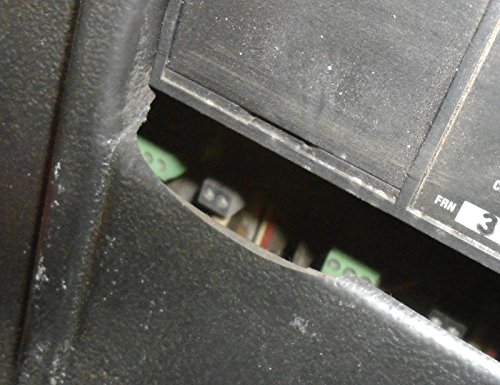

Figure 4.2: Another close-up illustrating damage to a plastic edge of the controller. Physical integrity is important for environmental protection and electrical safety.
5. Malangizo Ogwiritsira Ntchito
Once the SMC Plus controller is correctly installed and configured, operation typically involves sending start and stop commands. The controller manages the motor's acceleration and deceleration profiles based on the programmed parameters.
- Kuyambira Motere: Apply a start signal to the designated control input. The controller will ramp up the motor voltage and current according to the programmed soft-start profile.
- Kuyimitsa Mota: Remove the start signal or apply a stop signal. The controller will ramp down the motor voltage and current according to the programmed soft-stop profile.
- Kuyang'anira: Observe the controller's display (if present) or status indicators for operational feedback and diagnostic messages.
6. Kusamalira
Regular maintenance ensures the longevity and reliable performance of your SMC Plus controller. Always disconnect power before performing any maintenance.
- Kuyendera: Periodically inspect the controller for dust accumulation, loose connections, signs of overheating, or physical damage such as cracks in the casing or corrosion on metal parts. Pay particular attention to areas like the fan base for rust.
- Kuyeretsa: Use dry, compressed air to remove dust from heat sinks and internal components. Do not use liquids.
- Kuwona Malumikizidwe: Verify that all power and control wiring connections are tight and free from corrosion.
- Zimakupiza Opaleshoni: If equipped with a cooling fan, ensure it operates freely and is not obstructed.
7. Mavuto
This section provides general guidance for common issues. For detailed diagnostics, refer to the comprehensive troubleshooting guide in the full product manual or contact Allen-Bradley technical support.
| Vuto | Chifukwa Chotheka | Yankho |
|---|---|---|
| Motor sikuyamba | No control signal, incorrect wiring, power supply issue, fault condition. | Check control wiring, verify power, clear any fault codes, ensure start signal is present. |
| Motor trips on overload | Motor current exceeds programmed limit, mechanical binding, incorrect FLA setting. | Check motor load, verify motor FLA setting in controller, inspect motor and driven equipment. |
| Controller displays fault code | Internal fault, external protection trip, communication error. | Refer to the controller's display for the specific fault code and consult the product manual for resolution steps. |
8. Zofotokozera
The following are general specifications for the Allen-Bradley SMC Plus Smart Motor Controller, Model 150-A240NBD Series A. Specific performance characteristics may vary based on application and configuration.
- Mtundu: Allen-Bradley
- Nambala Yachitsanzo: 150-A240NBD Series A
- Item Model Number (Internal/Inventory): C-SC-E1107-153951-8990
- Kulemera kwa chinthu: 69 mapaundi
- Wopanga: Allen-Bradley
- Tsiku Loyamba Kupezeka: Novembala 10, 2014
9. Chitsimikizo ndi Thandizo
For warranty information, technical support, or service inquiries, please refer to the official Allen-Bradley documentation or contact your authorized distributor. Specific warranty terms may vary based on purchase date and region.
