Hunter Builder Plus 52-inch Indoor Ceiling Fan

1. Chiyambi ndi Kupitiliraview

The Hunter Builder Plus ceiling fan is designed to provide efficient air movement and lighting for indoor spaces. This manual provides essential information for safe installation, operation, and maintenance of your ceiling fan.

Image 1.1: Hunter Builder Plus 52-inch ceiling fan in a living room setting.

Zofunika kwambiri ndi izi:

• Classic Ceiling Fan: Traditional design with LED lights and swirled marble glass.
• Chida Chowala cha LED: Energy-efficient, dimmable LED bulbs for adjustable lighting.
• WhisperWind Motor: Designed for powerful air movement with quiet performance.

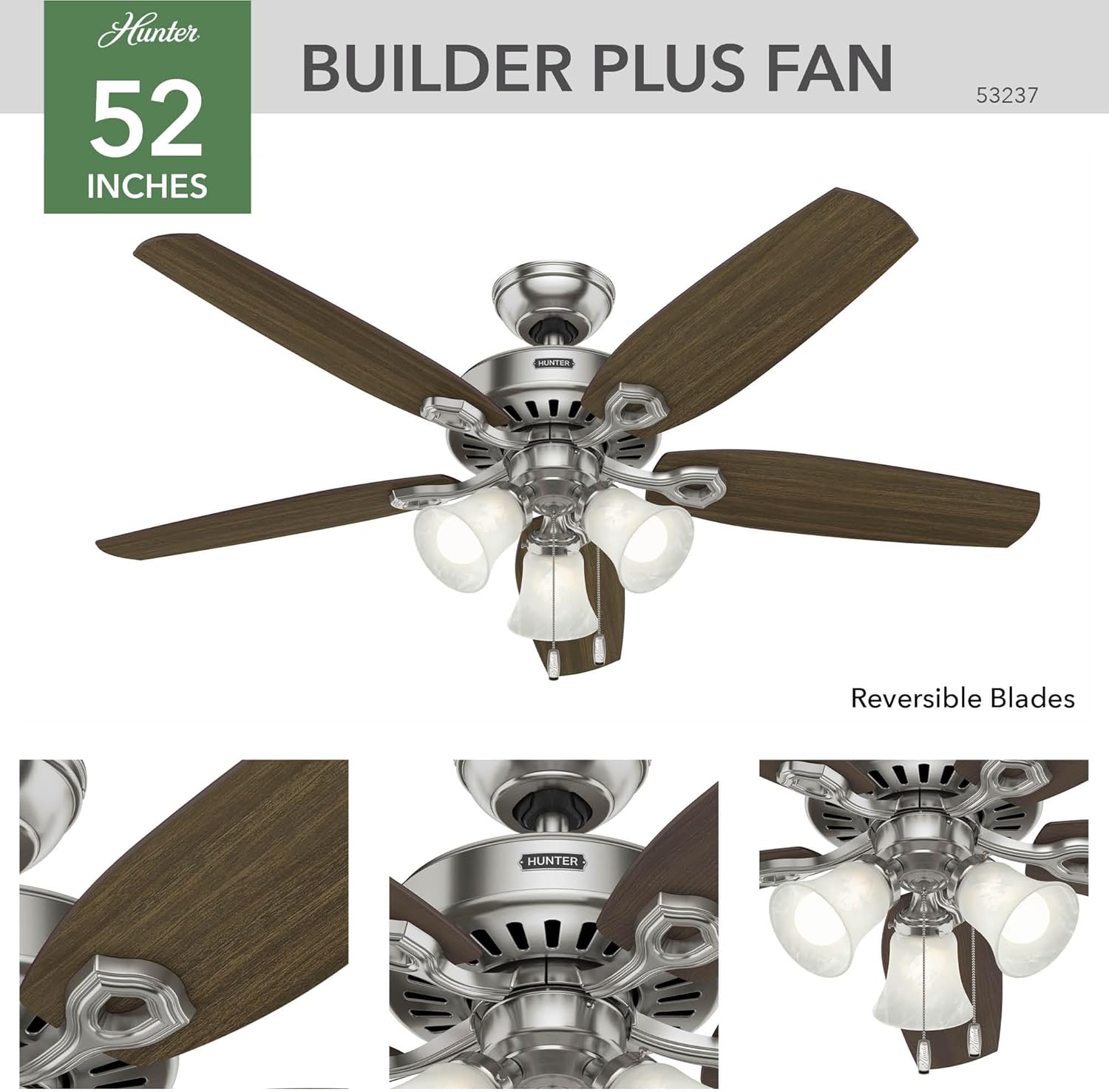

• Mabala Otembenuzidwa: Allows for seasonal air circulation optimization.

2. Zambiri Zachitetezo

Before beginning installation, read all instructions carefully. Improper installation can lead to electrical shock, fire, or personal injury.

• Nthawi zonse dulani magetsi pa chodulira magetsi chachikulu musanayike kapena kukonza.
• Onetsetsani kuti mayendedwe onse amagetsi akutsatira ma code ndi malamulo amderalo.
• Mount the fan only to an outlet box marked "Acceptable for Fan Support of 35 lbs (15.9 kg) or less."
• Musapindire zogwirira tsamba mukakhazikitsa kapena kuyeretsa.
• Ensure proper clearance between fan blades and any obstructions.

3. Kuphatikiza Zida

Verify that all components are present before beginning installation. Refer to the diagram below for a visual representation of included parts.

Image 3.1: Components included in the Builder Plus fan box.

• 52-inch Ceiling Fan Unit
• 5 Reversible Blades
• 3 Mababu a LED
• 3-inch Downrod (for standard mount)
• Zipangizo Zoyikira ndi Mabraketi
• Pull Chains for Fan Speed and Light Control

4. Kukhazikitsa ndi Kuyika

Installation should be performed by a qualified electrician or a person with experience in electrical wiring and ceiling fan installation. Follow these general steps:

1. Konzani Malo Okwera: Ensure the ceiling electrical box is securely mounted and rated for ceiling fan support.
2. Assemble the Fan: Attach the fan blades to the motor housing. Connect the downrod to the motor and canopy.
3. Mount the Fan: Secure the fan assembly to the ceiling electrical box using the provided mounting bracket.
4. Waya Fan: Connect the electrical wires according to the wiring diagram in the full instruction manual.
5. Ikani Light Kit: Attach the light kit to the fan motor housing and install the LED bulbs.
6. Bwezerani Mphamvu: Kuyika kukamaliza, bwezeretsani mphamvu pa circuit breaker.

5. Malangizo Ogwiritsira Ntchito

Your Hunter Builder Plus fan is designed for ease of use with pull chain controls.

5.1 Kuthamanga kwa Fan Control

The fan speed is controlled by one of the pull chains. Pull the chain repeatedly to cycle through the available speed settings (High, Medium, Low, Off).

Video 5.1: Demonstration of the Hunter Builder Plus fan operating at different speeds.

5.2 Kuwongolera Kuwala

The LED light kit is controlled by the other pull chain. Pull the chain to turn the lights on or off. The LED bulbs are dimmable, allowing you to adjust the ambiance.

5.3 Reversible Motor for Seasonal Use

The fan features a reversible motor to optimize air circulation for both warm and cool weather. A switch on the fan body allows you to change the direction of blade rotation.

Image 5.2: Reversible Multi-Speed Motor for Summer and Winter modes.

• Chilimwe (Motsutsana ndi wotchi): Set blades to spin counter-clockwise to create a downdraft, providing a cooling effect.
• Nthawi Yozizira (Kuzungulira wotchi): Set blades to spin clockwise on low speed to create an updraft, circulating warm air trapped near the ceiling.

5.4 WhisperWind Motor Technology

The WhisperWind motor ensures powerful air movement with quiet performance, making it suitable for bedrooms and living rooms where noise levels are a concern.

Image 5.3: WhisperWind Motor icon.

5.5 Mphamvu Mwachangu

Using your ceiling fan can help reduce energy consumption by allowing you to adjust your thermostat settings.

Image 5.4: Energy saving with ceiling fan usage.

6. Kusamalira

Kusamalira nthawi zonse kumatsimikizira kugwira ntchito bwino komanso moyo wautali wa fan yanu yapadenga.

• Kuyeretsa: Use a soft brush or lint-free cloth to clean the fan blades and motor housing. Avoid using abrasive cleaners that may scratch surfaces.
• Kusintha Babu: Ensure power is off before replacing LED bulbs. Use only recommended bulb types and wattages.
• Limbitsani Zopangira: Periodically check and tighten all screws on the fan assembly and blade attachments to prevent wobbling and noise.

7. Mavuto

If your fan is not operating correctly, consult the following common issues:

• Fani Siiyamba: Check circuit breakers and wall switches. Ensure all wiring connections are secure.
• Phokoso ntchito: Verify all screws are tight. Check if blades are properly balanced and not warped. Ensure the fan is securely mounted to the ceiling box.
• Magetsi Sakugwira Ntchito: Check bulbs for proper installation and ensure they are not burnt out. Verify light kit wiring connections.
• Kugwedezeka Kwambiri: Ensure all blade screws are tightened. Check blade balance using a balancing kit (if provided). Verify the mounting bracket is securely fastened.

8. Zofotokozera

Detailed technical specifications for the Hunter Builder Plus 52-inch Indoor Ceiling Fan.

Image 8.1: Fan Dimensions for various mounting types.

9. Chitsimikizo ndi Thandizo

Hunter Fan Company stands by the quality of its products.

• Chitsimikizo: This product comes with a Lifetime Limited Warranty. Refer to the full warranty document for details on coverage and terms.
• Thandizo: For technical assistance, replacement parts, or warranty claims, please visit the official Hunter Fan Company webtsamba kapena funsani makasitomala awo.

Hunter Fan Company has been a trusted name for over 140 years, with a certified in-house testing lab to ensure products meet high standards for safety and durability.
