D-Link DGS-1500-28 SmartPro 24-Port Gigabit Switch User Manual

1. Mawu Oyamba

The D-Link DGS-1500-28 SmartPro 24-Port Gigabit Switch is a high-performance Layer 3 managed switch designed for small to medium-sized businesses. It offers 24 Gigabit Ethernet ports and 4 SFP+ expansion slots, providing flexible connectivity and advanced management features. This manual provides essential information for the proper installation, configuration, operation, and maintenance of your DGS-1500-28 switch.

2. Zamkatimu Phukusi

Verify the following items are present in your DGS-1500-28 package. If any item is missing or damaged, please contact your local D-Link reseller for assistance.

• DGS-1500-28 SmartPro 24-Port Gigabit Switch
• Chingwe cha Mphamvu
• Rack Mount Kit (two brackets and screws)
• Mapazi a Rubber (okhazikitsa pakompyuta)
• Console Cable (RJ-45 to RS-232)
• Quick unsembe Guide
• CD-ROM (containing product documentation)

3. Kufotokozera Thupi

3.1 Gulu Lakutsogolo

The front panel of the DGS-1500-28 switch features the Gigabit Ethernet ports, SFP+ slots, and LED indicators for monitoring the switch's status and activity.

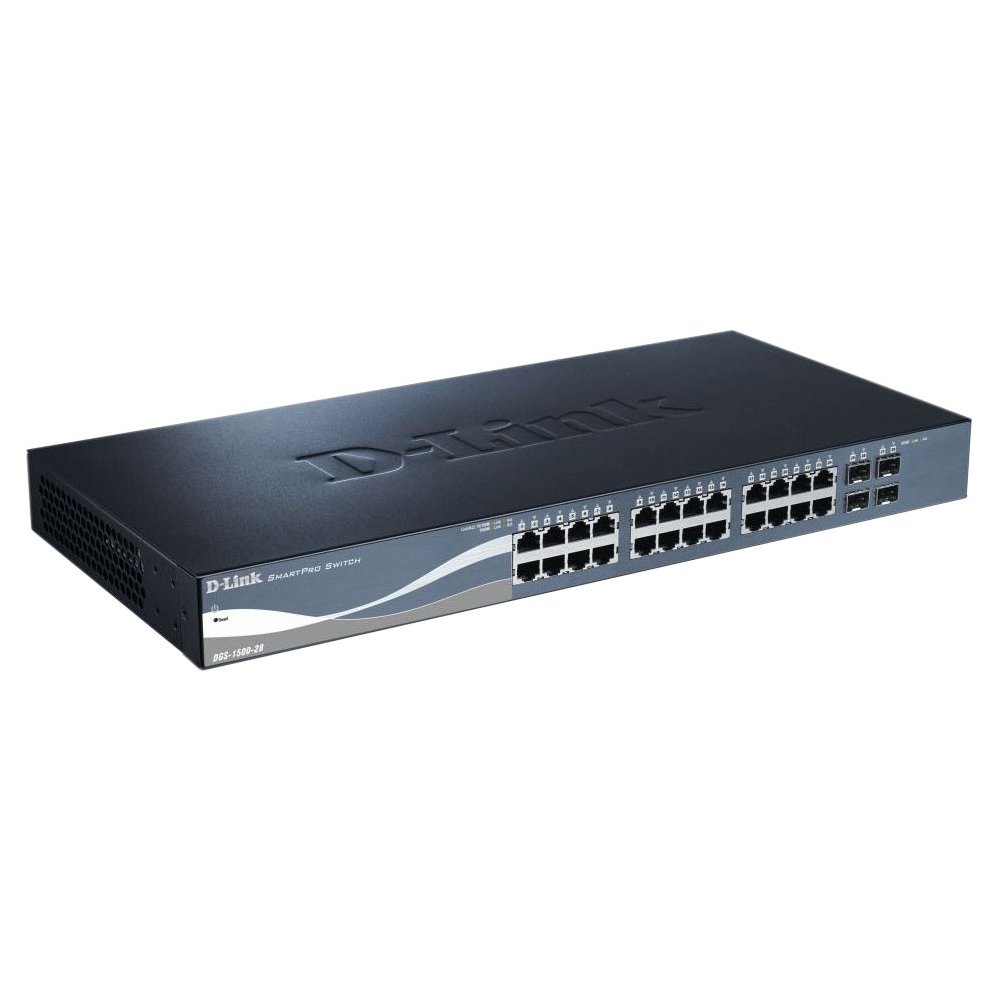

This image displays the front panel of the D-Link DGS-1500-28 switch, featuring 24 RJ-45 Gigabit Ethernet ports and LED indicators for status and activity.

• RJ-45 Ports (1-24): 10/100/1000 Mbps Gigabit Ethernet ports for connecting network devices.
• SFP+ Slots (25-28): 10 Gigabit Ethernet SFP+ ports for fiber optic connections or stacking.
• Zizindikiro za LED:
  • Mphamvu ya LED: Zimasonyeza mphamvu.
  • LED yolumikizira/yochita (pa doko lililonse): Indicates network link and data activity.
  • Liwiro la LED (pa doko lililonse): Indicates connection speed (e.g., green for Gigabit, amber for 10/100 Mbps).

3.2 Gulu lakumbuyo

The rear panel typically includes the power connector, grounding screw, and a console port for out-of-band management.

• Chotengera Mphamvu cha AC: Connects to the provided AC power cord.
• Grounding screw: Provides an optional connection for grounding the switch.
• Console Port: RJ-45 port for connecting a console cable to a computer for command-line interface (CLI) management.

4. Kuyika

4.1 Kuyika pa desktop

1. Attach the four rubber feet to the recessed areas on the bottom of the switch.
2. Place the switch on a sturdy, level surface that can support its weight.
3. Ensure adequate ventilation around the switch.

4.2 Kuyika kwa Rack

1. Attach the two rack-mounting brackets to the sides of the switch using the provided screws.
2. Secure the switch into a standard 19-inch equipment rack using appropriate rack screws (not included).
3. Ensure proper airflow and avoid placing the switch near heat sources.

4.3 Kuyang'ana Kusintha

1. Connect the AC power cord to the power receptacle on the rear panel of the switch.
2. Lumikizani mbali ina ya chingwe chamagetsi pamalo oyenera magetsi.
3. The Power LED on the front panel will illuminate, indicating the switch is receiving power.

5. Kusintha Koyamba

The DGS-1500-28 switch can be managed via a web-based graphical user interface (GUI) or a command-line interface (CLI) through the console port.

5.1 Kupeza ma Web-maziko a Management Interface

1. Connect a computer to any of the switch's RJ-45 ports using an Ethernet cable.
2. Configure your computer's IP address to be in the same subnet as the switch's default IP address (e.g., if the switch is 10.90.90.90, set your computer to 10.90.90.100).
3. Tsegulani a web browser and enter the switch's default IP address (e.g., http://10.90.90.90) mu bar adilesi.
4. Enter the default username and password (refer to the Quick Installation Guide for default credentials).
5. Upon successful login, you will access the switch's web kasamalidwe mawonekedwe.

Zindikirani: It is highly recommended to change the default password immediately after initial login for security purposes.

6. Kugwiritsa Ntchito Switch

Once configured, the DGS-1500-28 operates as a network switch, forwarding data between connected devices. The LED indicators provide visual feedback on the operational status of the switch and its ports.

6.1 Port Functionality

• Madoko a RJ-45: Automatically detect the speed and duplex mode of connected devices (10/100/1000 Mbps).
• SFP+ Slots: Support 10 Gigabit Ethernet transceivers for high-speed uplinks or stacking. Ensure compatible SFP+ modules are used.

6.2 Zapamwamba

The DGS-1500-28 series integrates advanced features to enhance network performance and management:

• Virtual Stacking: Allows up to 32 DGS-1500 series devices to be managed as a single unit with one IP address, simplifying network administration and scalability.
• Layer 3 Static Routing: Enables the switch to forward IP packets between different IP subnets based on static routes configured by the administrator. This feature is crucial for inter-VLAN routing and basic network segmentation.

7. Kusamalira

Regular maintenance ensures optimal performance and longevity of your DGS-1500-28 switch.

• Zosintha za Firmware: Nthawi ndi nthawi yang'anani thandizo la D-Link website for the latest firmware versions. Updating firmware can provide new features, performance improvements, and security patches.
• Zachilengedwe: Ensure the switch operates within recommended temperature and humidity ranges. Keep ventilation openings clear of obstructions.
• Kuyeretsa: Gwiritsani ntchito nsalu yofewa komanso youma kuti muyeretse kunja kwa switch. Musagwiritse ntchito zotsukira zamadzimadzi kapena aerosol.
• Zosunga zobwezeretsera: Regularly back up your switch configuration to an external device. This allows for quick restoration in case of a factory reset or device replacement.

8. Mavuto

This section provides solutions to common issues you might encounter with your DGS-1500-28 switch.

8.1 Mphamvu ya LED yazimitsidwa

• Ensure the power cord is securely connected to both the switch and a working power outlet.
• Tsimikizirani kuti cholumikizira magetsi chikugwira ntchito polumikiza chipangizo china.

8.2 Palibe Ulalo/Ntchito pa Doko

• Check the Ethernet cable connection at both ends. Try a different cable.
• Onetsetsani kuti chipangizo cholumikizidwacho chayatsidwa ndipo chikugwira ntchito bwino.
• Verify the port status in the switch's web kasamalidwe mawonekedwe.
• Pa madoko a SFP+, onetsetsani kuti gawo la SFP+ layikidwa bwino komanso likugwirizana.

8.3 Sindingathe Kufikira Web Kuwongolera Maubwino

• Confirm your computer's IP address is in the same subnet as the switch's IP address.
• Verify the switch's IP address. If unknown, you may need to reset the switch to factory defaults (refer to the Quick Installation Guide for reset procedures).
• Onetsetsani kuti palibe mikangano ya adilesi ya IP pa netiweki.
• Try accessing the interface from a different web browser or computer.

9. Zofotokozera

10. Chitsimikizo ndi Thandizo

D-Link products are backed by a limited warranty. The specific terms and conditions of the warranty may vary by region and product. Please refer to the warranty information included with your product or visit the official D-Link website for detailed warranty statements.

For technical support, product documentation, firmware updates, and FAQs, please visit the D-Link support webtsamba: www.dlink.com/support

You may also contact D-Link technical support directly through the contact information provided on their webtsamba la dera lanu lenileni.
