1. Mawu Oyamba
This manual provides essential information for the safe and efficient operation of your Sharp AQUOS LC-52E77U LCD HDTV. Please read these instructions thoroughly before using the television and retain them for future reference.
The Sharp AQUOS LC-52E77U features a 52-inch Full HD 1080p display with 120Hz Fine Motion Enhanced technology for smooth motion. It incorporates a 10-Bit AVS Superlucent LCD Panel and Spectral Contrast Engine XD to deliver deep black levels and vibrant, accurate colors. This model includes built-in ATSC/QAM/NTSC tuners and a variety of connectivity options to integrate with your home entertainment system.

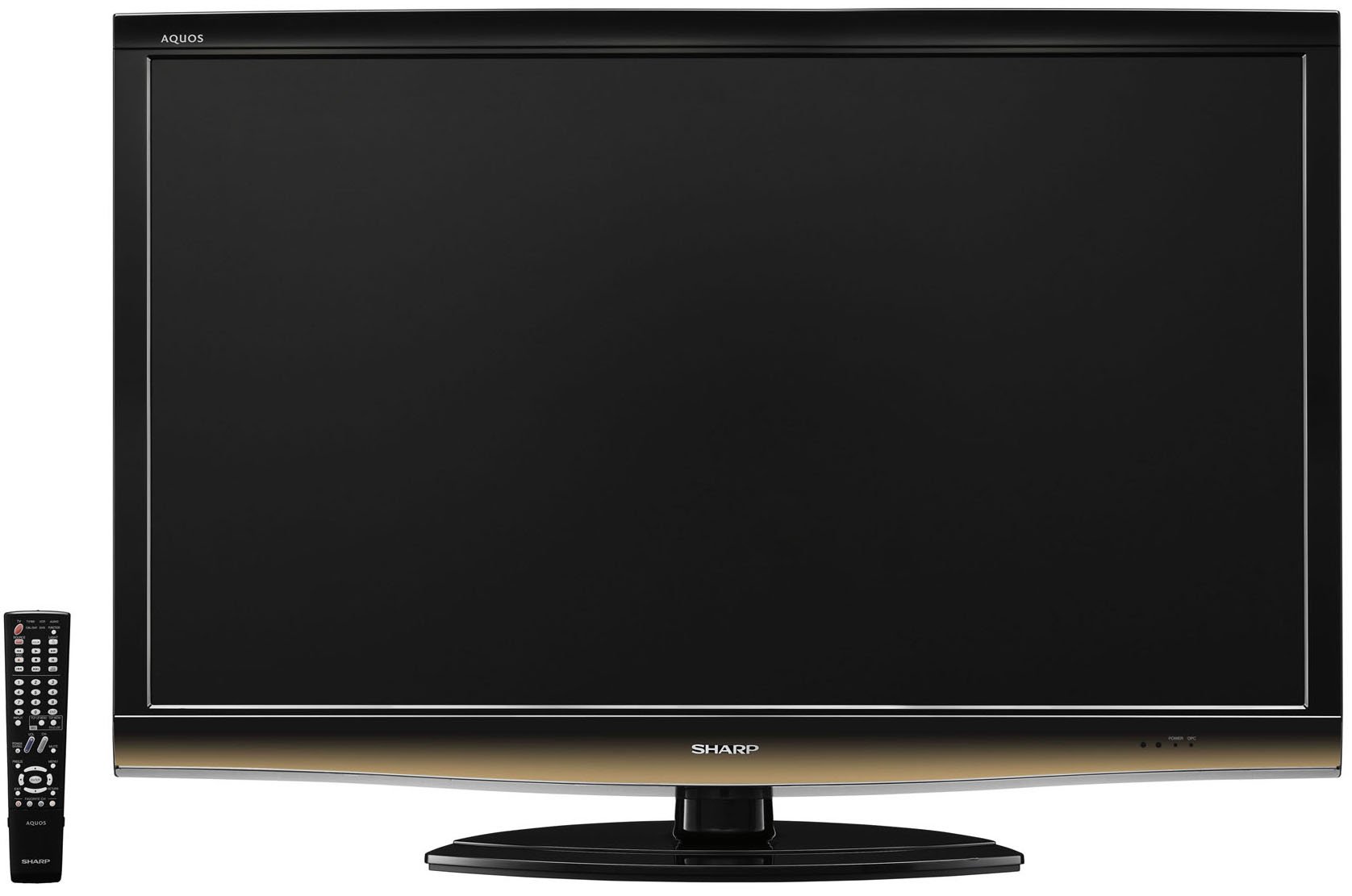

Patsogolo view of the Sharp LC-52E77U AQUOS LCD HDTV, showcasing its slim bezel and screen.
2. Zambiri Zachitetezo
Always follow basic safety precautions when using this television to reduce the risk of fire, electric shock, and injury to persons.
- Do not block ventilation openings. Ensure adequate space around the television for proper airflow.
- Musayike wailesi yakanema pa ngolo yosakhazikika, pa stand, pa tripod, pa bracket, kapena patebulo.
- Tetezani chingwe chamagetsi kuti chisayendetsedwe kapena kukanikizidwa, makamaka pamapulagi, zotengera zosavuta, komanso pomwe amatuluka pazida.
- Chotsani chipangizochi pa nthawi yamphezi kapena chikagwiritsidwa ntchito kwa nthawi yaitali.
- Tumizani mautumiki onse kwa ogwira ntchito oyenerera. Kutumikira kumafunika pamene chipangizocho chawonongeka mwanjira iliyonse, monga chingwe chopangira mphamvu kapena pulagi yawonongeka, madzi atayika kapena zinthu zagwera mu zipangizo, zida zakhala zikukumana ndi mvula kapena chinyezi, sizigwira ntchito bwino. , kapena wagwetsedwa.
3. Zamkatimu Phukusi
Onetsetsani kuti zinthu zonse zilipo mu phukusi:
- Sharp AQUOS LC-52E77U LCD HDTV
- Kuwongolera kutali ndi Mabatire
- Detachable Table Stand
- Chingwe cha Mphamvu
- Buku la ogwiritsa (chikalatachi)
- Khadi la chitsimikizo (ngati kuli kotheka)
4. Kukhazikitsa
4.1 Kuyika Kwathupi
Your television can be installed on its included table stand or mounted on a wall using a compatible VESA wall mount (sold separately).
Kuyika Table Stand:
- Carefully place the television screen-down on a soft, flat surface to prevent damage.
- Attach the stand base to the television using the provided screws. Ensure all screws are tightened securely.
- The table stand features swivel capability for adjusting the viewngodya.
Kuyika Pakhoma:
If wall-mounting, remove the table stand. Consult the instructions provided with your wall mount bracket for proper installation. Ensure the wall mount is rated for the weight and size of this television (approximately 59.5 pounds).
4.2 Kulumikiza Zipangizo
The LC-52E77U offers various input terminals for connecting external devices.
- Zolowetsa za HDMI (x5): Connect Blu-ray players, game consoles, cable/satellite boxes, and other HDMI-compatible devices. These inputs are compatible with 1080p signals.
- Component Video Inputs (x2): Connect devices using component video cables (YPbPr) for high-definition signals up to 1080p.
- Kulowetsa kwa PC: Connect a computer to use the television as a monitor.
- Zolowetsa za RS-232C: For advanced control systems.
- Kulowetsa kwa Antenna/Chingwe: Connect an antenna or cable TV feed for accessing built-in tuners.
Ensure all cables are securely connected to the correct ports on both the television and your external devices.
4.3 Mphamvu Yoyamba Yayatsidwa
- Plug the power cord into the television and then into a wall outlet.
- Press the Power button on the television or the remote control.
- Follow the on-screen prompts for initial setup, including language selection, channel scanning (for antenna/cable), and time zone settings.
5. Malangizo Ogwiritsira Ntchito
5.1 Zowongolera Zoyambira
- Mphamvu: Kuyatsa kapena kuzimitsa TV.
- Kuchuluka (+/-): Kusintha kamvekedwe ka mawu.
- Channel (Up/Down): Changes the television channel when using the built-in tuners.
- Zolowetsa/Zochokera: Cycles through available input sources (HDMI 1, Component 1, PC, etc.).
- Menyu: Imapeza mndandanda wazithunzi zowonekera (OSD) zosintha zosintha.
Mapangidwe a Chithunzi cha 5.2
Access the Picture menu to customize your viewzochitika. Zinthu zazikuluzikulu zikuphatikiza:
- Chithunzi: Select from preset modes (e.g., Standard, Movie, Game) or customize your own.
- Kusiyanitsa: Adjusts the difference between light and dark areas of the picture. The Spectral Contrast Engine XD enhances deep black levels.
- Kuwala: Imawongolera kuwala konse kwa sikirini.
- Color/Saturation: Amasintha mphamvu ya mitundu.
- Chizindikiro: Adjusts the green-to-red balance (primarily for NTSC signals).
- Kuthwanima: Enhances or softens the edges of objects in the picture.
- 120Hz Fine Motion Enhanced: This feature processes fast-moving images to reduce motion blur, providing a smoother viewing experience. It can be adjusted or disabled in the picture settings.
- OPC (Optical Picture Control): This feature senses ambient room light and automatically adjusts the screen brightness. While designed for power saving and backlight longevity, some users may prefer to disable it for consistent brightness.
For optimal picture quality, consider calibrating your television using a calibration disc or professional service.
5.3 Zikhazikiko za Phokoso
The LC-52E77U features built-in speakers. Access the Audio menu to adjust settings such as:
- Mawonekedwe Oyenera: Select from preset audio modes (e.g., Standard, Music, Movie).
- Bass/Treble: Adjust low and high-frequency audio levels.
- Kusamalitsa: Adjust the volume balance between left and right speakers.
- Phokoso lozungulira: Enable or disable virtual surround sound effects.
For enhanced audio, connect the television to an external audio system (e.g., soundbar, AV receiver) via the available audio output ports.
5.4 Kusankha Zolowetsa
To switch between connected devices, press the 'Input' or 'Source' button on your remote control. A list of available inputs will appear on the screen. Navigate using the arrow keys and press 'Enter' or 'OK' to select the desired input.
5.5 Ntchito ya Tuner
The television includes built-in ATSC (digital terrestrial), QAM (digital cable), and NTSC (analog terrestrial) tuners. After connecting an antenna or cable feed and performing a channel scan during initial setup, you can use the Channel Up/Down buttons to browse available channels.
6. Kusamalira
6.1 Kuyeretsa Screen
Kuti muyeretse chophimba, pukutani pang'onopang'ono ndi nsalu yofewa, yopanda lint. Kwa zizindikiro zouma, mopepuka dampsungani nsaluyo ndi madzi kapena chotsukira mwapadera. Osapoperapo zotsukira pa zenera.
6.2 Kuyeretsa nduna
Wipe the television cabinet with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
6.3 Chisamaliro Chachikulu
- Avoid exposing the television to direct sunlight or extreme temperatures.
- Do not place heavy objects on top of the television.
- Keep the television away from sources of strong magnetic fields.
7. Mavuto
If you experience issues with your television, refer to the following common troubleshooting steps before contacting customer support.
| Vuto | Chifukwa Chotheka / Njira Yothetsera |
|---|---|
| Palibe mphamvu | Ensure the power cord is securely plugged into the TV and a working electrical outlet. Check if the outlet has power. |
| Palibe chithunzi, koma phokoso liripo | Tsimikizirani kuti gwero lolondola lasankhidwa. Yang'anani kulumikiza zingwe kuzipangizo zakunja. |
| Palibe phokoso, koma chithunzi chilipo | Check the volume level and ensure the TV is not muted. If using external speakers, check their connections and power. |
| Kuwongolera kutali sikukugwira ntchito | Sinthani mabatire mu chowongolera chakutali. Onetsetsani kuti palibe zopinga pakati pa cholumikizira chakutali ndi sensa ya IR ya TV. |
| Chithunzicho chasokonekera kapena sichidziwika bwino | Check cable connections for looseness or damage. Adjust picture settings (e.g., sharpness, picture mode). If using an antenna, check its position and signal strength. |
8. Zofotokozera
- Chitsanzo: LC-52E77U
- Kukula Kwazenera: 52 mainchesi (diagonal)
- Tekinoloje Yowonetsera: LCD (10-Bit AVS Superlucent LCD Panel)
- Kusamvana: 1920 x 1080 (Full HD 1080p)
- Mtengo Wotsitsimutsa: 120 Hz (with Fine Motion Enhanced)
- Nthawi Yoyankha: 4ms
- Viewma Angles: 176°H x 176°V
- Kusiyanitsa: Spectral Contrast Engine XD
- Zochuna: Built-in ATSC / QAM / NTSC
- Kulumikizana:
- HDMI Inputs: 5 (compatible with 1080p signals)
- Component Video Inputs: 2 (HD 1080p compatible)
- PC Input: 1
- Zolowetsa za RS-232C: 1
- Mtundu Wolankhula: Built-In, bottom-mounted
- Kulemera kwa chinthu: Approximately 59.5 Pounds (without stand)
- Makulidwe azinthu (W x H x D): Approximately 49.38 x 33.94 x 12.78 inches (with stand)
- Mphamvu Zamagetsi: Energy Star ikugwirizana
9. Chitsimikizo ndi Thandizo
This product typically comes with a 15-month warranty from the date of purchase. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Sharp webmalo.
As part of the AQUOS Advantage Program, Sharp provides customer support for its AQUOS televisions. If you require technical assistance, service, or have questions regarding your LC-52E77U, please contact Sharp customer support through their official channels.
Kuti mudziwe zambiri ndi chithandizo, mutha kupita ku Sharp Store on Amazon or the official Sharp webmalo.
