Vividia VS-2329 Portable Sewer Pipe Inspection Camera User Manual

Mawu Oyamba

The Vividia VS-2329 is a portable sewer pipe inspection camera system designed for detailed visual inspection of pipes, drains, ducts, and other hard-to-reach areas. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your device.

Zamkatimu Phukusi

Chonde onetsetsani kuti zonse zomwe zalembedwa pansipa zikuphatikizidwa mu phukusi lanu:

• VS-2329 Pipe Inspection Camera System
• Charger
• Buku la ogwiritsa (chikalatachi)
• Industrial Carrying Case

Image: The durable industrial carrying case for the VS-2329 system, designed for transport and protection.

Zathaview

Familiarize yourself with the main components of the Vividia VS-2329 system.

Image: Labeled diagram showing the 7-inch TFT color screen, sunshade, SD card slot, brightness switch, headset interface, Type-C charging port, image capture button, power button, record video/audio button, camera head, cable brake, 5mm 20m cable reel, and aluminum case.

Zigawo Zofunikira:

• 7-inch TFT Color Monitor: Provides a clear display of the inspection area.
• Mutu wa Kamera: 23mm diameter, waterproof (IP68), with 12 adjustable LED lights.
• Push-Rod Cable: 30m (98 ft) long glass fiber cable for extended reach.
• Control Unit: Integrated with the monitor, featuring controls for recording, zoom, and LED brightness.
• Battery Yowonjezedwanso: 6000mAh for portable operation.
• Industrial Carrying Case: For protection and transport.

Khazikitsa

1. Kuyitanitsa Battery

Before first use, fully charge the integrated 6000mAh lithium battery. Connect the provided charger to the Type-C charging port on the monitor unit and to a power outlet. The charging indicator will show the charging status. A full charge provides approximately 4 hours of operation.

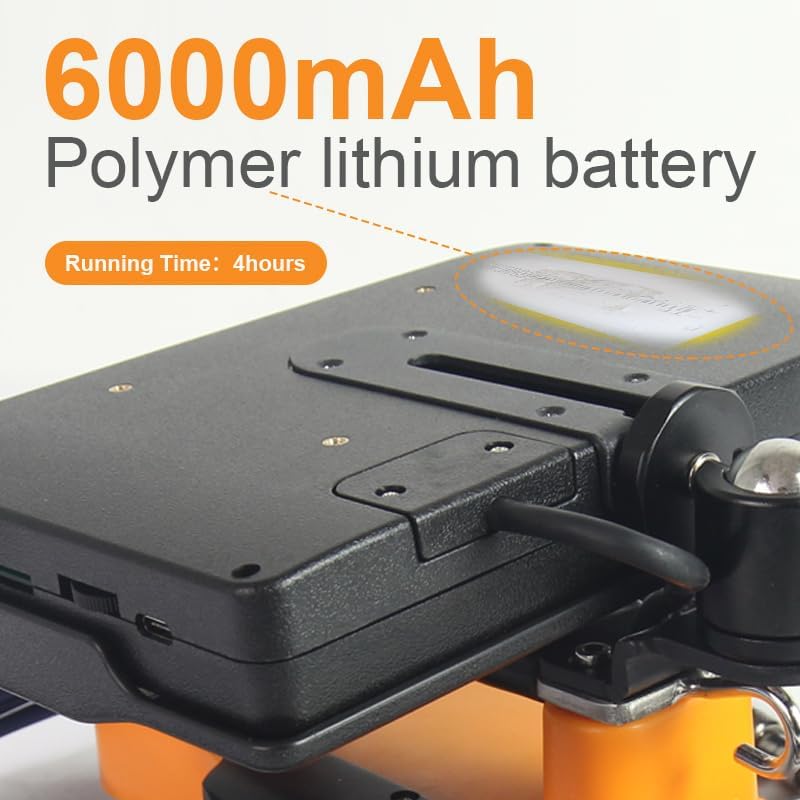

Image: Close-up of the 6000mAh polymer lithium battery, indicating a running time of 4 hours.

2. Inserting the TF Card

Locate the SD card slot on the monitor unit. Insert the included 8GB TF card (or another compatible MicroSD card) into the slot until it clicks into place. This card is necessary for recording photos and videos.

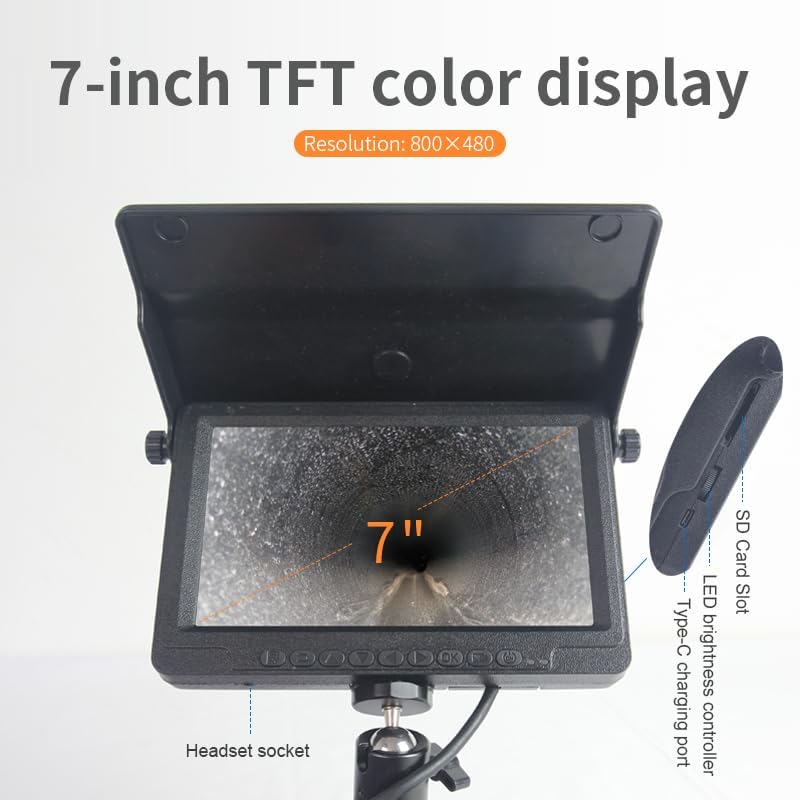

Image: The 7-inch TFT color display, highlighting the SD card slot, LED brightness controller, and Type-C charging port.

3. Connecting the Camera Head and Cable

Ensure the camera head is securely connected to the push-rod cable. The cable reel should be placed on a stable surface. The camera head is designed to be waterproof (IP68 rated) for use in wet environments.

Image: The 23mm camera head with its flexible spring, designed for navigating bends in pipes.

Image: The cable reel holding the blue 30-meter push-rod cable, with a handle for easy deployment.

Malangizo Ogwiritsira Ntchito

1. Kuyatsa/Kuzimitsa

Press and hold the Power button on the monitor unit to turn the system on or off. The 7-inch TFT color screen will display the live feed from the camera.

Image: The front panel of the 7-inch monitor, showing the array of control buttons below the screen.

2. Adjusting LED Brightness

Use the LED brightness controller (often a rotary knob or dedicated buttons) on the monitor unit to adjust the intensity of the 12 LED lights on the camera head. This helps illuminate dark inspection areas.

3. Digital Zoom

The monitor features an 8-level digital zoom function. Use the designated zoom buttons (Zoom In / Zoom Out) to magnify or reduce the view on the screen for closer inspection of details.

4. Recording Photos and Videos

• Kujambula chithunzi: Press the "Image Capture" button. Photos are saved as JPEG files to the TF card.
• Kuti mujambule kanema: Press the "Record Video/Audio" button to start recording. Press it again to stop. Videos are saved as AVI files to the TF card.

5. Deploying the Camera

Carefully feed the camera head and push-rod cable into the pipe or inspection area. Use the cable brake to control the cable's deployment and retraction. Monitor the screen for the live feed. The camera head's flexible spring helps it navigate bends.

Image: Close-up of the deep waterproof lens of the camera head, showing its 80-degree viewngodya.

Kusamalira

Kuyeretsa

• Mukamaliza kugwiritsa ntchito, makamaka m'malo odetsedwa, yeretsani mutu wa kamera ndi chingwe ndi malonda.amp nsalu. Pewani mankhwala owopsa.
• Ensure the camera lens is clean for clear images.
• Wipe down the monitor and control unit with a soft, dry cloth.

Kusungirako

• Store the system in its industrial carrying case to protect it from dust, moisture, and physical damage.
• Ensure the cable is neatly coiled on the reel before storage.
• Sungani pamalo ozizira, ouma kutali ndi dzuwa.

Kusamalira Battery

• Kuti mutalikitse moyo wa batri, pewani kuthimitsa batire pafupipafupi.
• If storing for extended periods, charge the battery to approximately 50-70% and recharge every few months.

Kusaka zolakwika

Zofotokozera

Chidziwitso cha Chitsimikizo

The Vividia VS-2329 Portable Sewer Pipe Inspection Camera comes with a 1-year wopanga chitsimikizo. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, please refer to the warranty card included with your product or contact customer support.

Thandizo la Makasitomala

If you encounter any issues or have questions regarding your Vividia VS-2329 system that are not addressed in this manual, please contact Vividia customer support. You can typically find contact information on the manufacturer's webtsamba kapena pakupanga kwazinthu.

When contacting support, please have your product model number (VS-2329) and purchase details ready.
